Zhengzhou Yishang Machinery Equipment Co., Ltd.

Palletizer

Automatic column rotary bag palletizer robot stacker

 palletizing machine equipment bagging packing line plant

Product Description

Automatic column rotary bags palletizer systemAutomatic column rotary bags palletizer system

Automatic column rotary bags palletizer systemAutomatic column rotary bags palletizer system

Automatic column rotary bags palletizer system

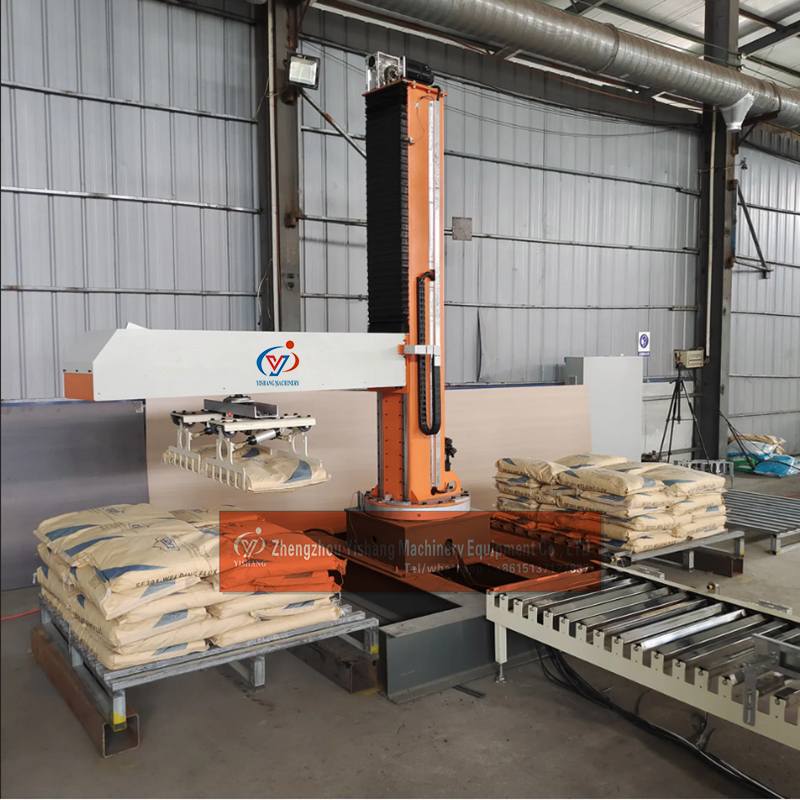

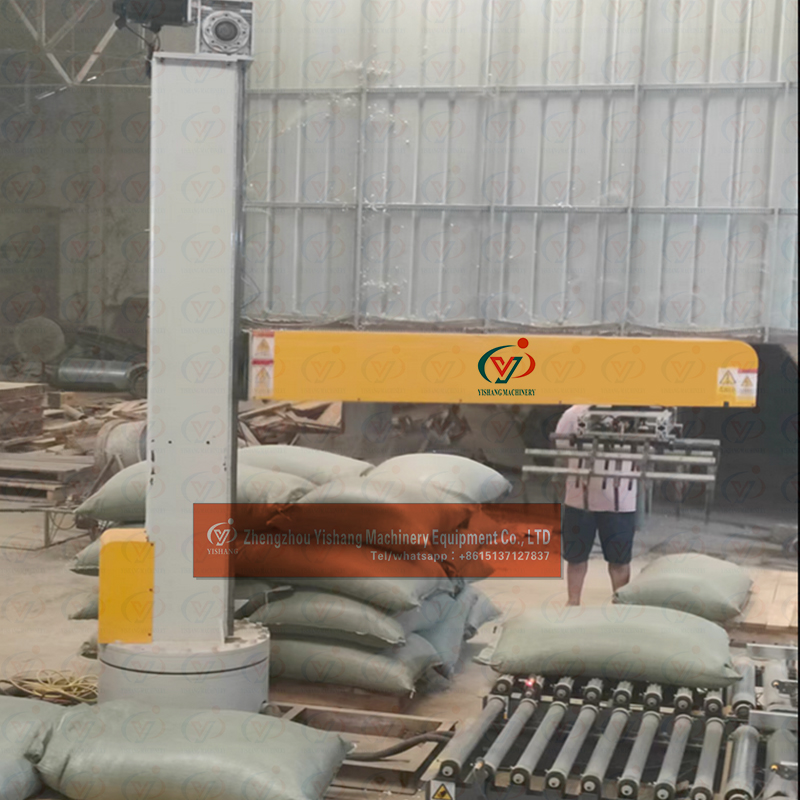

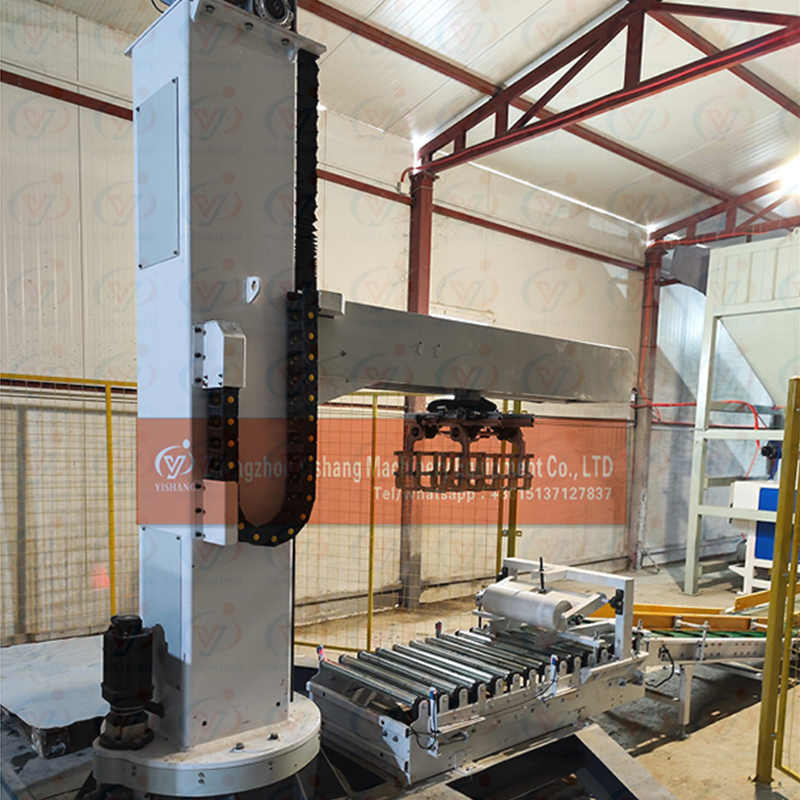

This is automatic column rotary bags palletizer system ,according to the site situation of your company and the space size of the working area, the installation position of the pallet-stacking machine is designed. The equipment parameters can be changed according to the user's requirements. The pallet-stacking layer can be modified according to the customer's requirements.




Column type palletizing machine robot palletizing machine has 3 by degrees, respectively for the vertical direction of movement, horizontal direction of movement and vertical direction of rotation. The main features of the equipment are:
1. Full servo drive, more accurate movement, faster action
2. Well configured, easy to use
3. Excellent selection of materials, durable
4. Reasonable structure, easy to operate and maintain




Model

YS-400YS-600
Palletizing Speed400 Bag/Hour650 Bag/Hour
Host Size3200*2200*3000mm3500*2400*3200mm
Device Power7.5kw11kw
Supply Power3*AC38+N3*AC38+N
Palletizing Height600-1600mm600-1600mm

Palletizing Layer

1-10 Layer1-12 Layer

Pelletizing Station

(Number of palletizing bags per layer )

3-123-12
Gas Supply Pressure0.6-1.0Mpa0.6-1.0Mpa
Weight3000kg3400kg
 Pallet location

Four flower stack,

five - flower stack,

liushun stack, etc



Four flower stack, five - flower stack,

liushun stack, etc





Equipment advantages



Intelligent stacker features German technology, low failure rate;Host highly integrated integration;Servo motor drive, gear drive;Simple and durable structure;Automatic oiling maintenance;Low noise;Precise control and various stack types.
1. High efficiency of automatic palletizer
2. Exquisite palletizing
3. Intelligent alarm
4. Stacking a variety of styles according to customer requirements.
5. Low requirements on working environment
6. Save stacking time,Simple operation

Product details

Conveying system

1.Grab and wait conveyor

2.Mechanical reverse conveyor

3.Square pipe vibrating conveyor

4.Leveling conveyor




      Palletizer

1. High efficiency of automatic palletizer

2. Exquisite palletizing

3. Intelligent alarm

4. Stacking a variety of styles according to customer  requirements.

5. Low requirements on working environment

6. Save stacking time,Simple operation

 Electric control system

 1.PLC+ touch screen control,

  2.SIEMENS 1200 series PLC, could communicate with other system
