Palletizer
Automatic packing line gantry palletizing machine automatic pallet stacker bag palletizer
Introduction

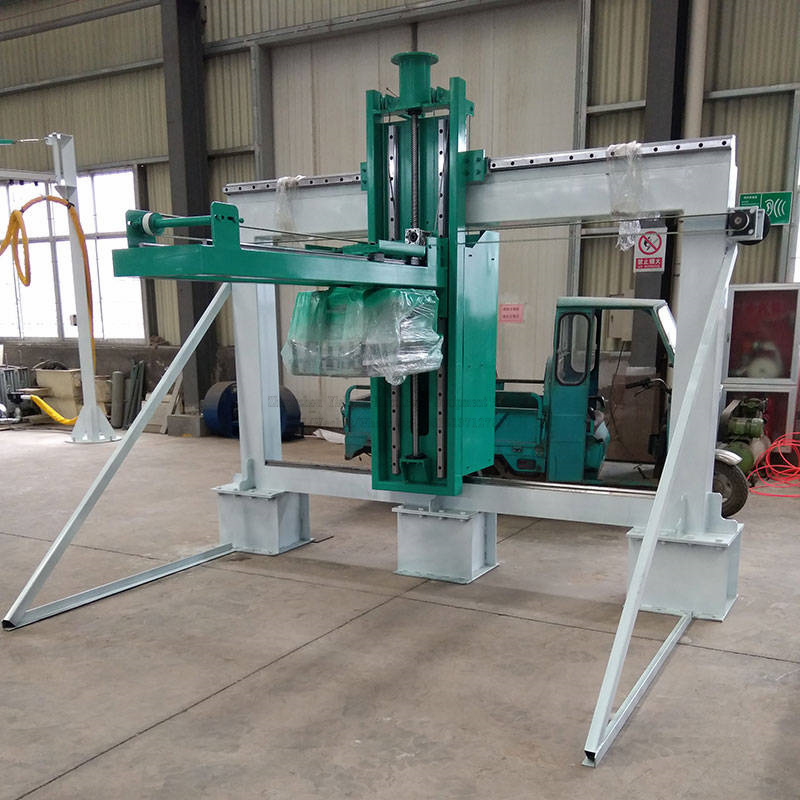

The gantry column bag palletizer produced by the company adopts full servo drive, good material selection, simple and reasonable structure, easy operation and maintenance, stable and reliable operation, flexible operation, high precision, wide range, low comprehensive application cost, to achieve effective use of cost, and due to the number of main parts, low maintenance cost, low power consumption, low failure rate, The stacking type and the number of stacking layers can be set arbitrarily. The stacking type is neat and will not collapse, which is convenient for storage and transportation.
Column palletifier adopts robot control system to realize linear interpolation from one point to another point, so that the movement becomes more smooth and smooth. Through the keying and display function, the movement of industrial robots can be taught and controlled by the operator, pre-store the stacking type in advance, and can flexibly add the later content, so that the stacking of bag products can be completed according to the required grouping mode and the number of layers.
Column palletizer has 4 degrees of freedom, flexible operation, can complete 300-600 operations per hour, the maximum load up to 100KG, body weight is about 1t, can choose a single claw or double claw according to the actual demand, and can replace grab, splint, adsorption gripper, Can box, bag, box, filling, bottling and other shapes of finished products for packing and palletizing. The operation is simple, just set the material bag product grouping mode and the number of layers, can complete the palletizing work.
Function:
To achieve product loading and unloading, handling, stacking and so on
Features:
The use of touch - operated special system, easy to operate. Simple structure, low failure rate, easy maintenance, a small number of major parts and accessories, maintenance costs are very low. It has the advantage of small area, high safety performance, continuous long time stable operation, can adapt to a variety of different working environment.
Scope of application:
Pillar palletico is widely used, can be used in chemical, building materials, feed, food, and other industries, equipped with different grippers, can complete different industries of various shapes of finished products packing and palleting tasks.
According to the requirements of users, can achieve a variety of flexible site palletizing requirements, and can carry out non-standard palletizing design, grab method: can be customized.
The application advantages of column palletizer are as follows:
1. High efficiency. Column palletizer grab 300 to 600 times per hour. Can be set according to the site requirements of single claw or double claw, replace a variety of grab, splint, adsorption gripper, can box, bag, box, filling, bottling and other shapes of finished products for packing and palleting. Speed and quality are much higher than manual stacking.
2. High working precision and large working range. The robot skull stacker has a small footprint and is flexible. Each robot has an independent control system, which can improve the accuracy of operation.
3. In terms of the overall implementation cost, the program has a low cost. Compared with the joint palletizing robot, the robot is economical, cost-effective, less basic components, low maintenance cost, low energy consumption, simple structure, low failure rate, convenient maintenance.
4. Column palletician can be used for multiple production lines. After replacing a product, only new data can be entered without hardware, device changes and Settings.
5, after setting the correct way of grouping and the number of layers, can quickly complete the palletizing of material bag products, so that it is stacked firmly, will not collapse, conducive to storage and transportation, simple and convenient operation.
Column palletizer has excellent performance, a wide range of application, covers an area of small, high flexibility, low cost, easy maintenance and other advantages, can improve the working environment of workers, reduce their labor burden, improve labor productivity, ensure product quality, so it is welcomed by users.
Palletizing workflow:
The packed items are transported to the robot handling area of the column palletizer through the conveyor line. When the sensor detects that the items are in place, the upper conveyor line will suspend the transportation to play a buffer role, and the empty palletizer will be placed to the palletizing station manually. Intelligent column palletifier grasp palletifier in accordance with the programming program. After the palletifier is completed, the robot will automatically repeat this action and place the palletifier on another palletifier. At the same time, the operator will be notified that the palletifier has completed and the palletifier will be sent to the designated product storage area by forklift.
