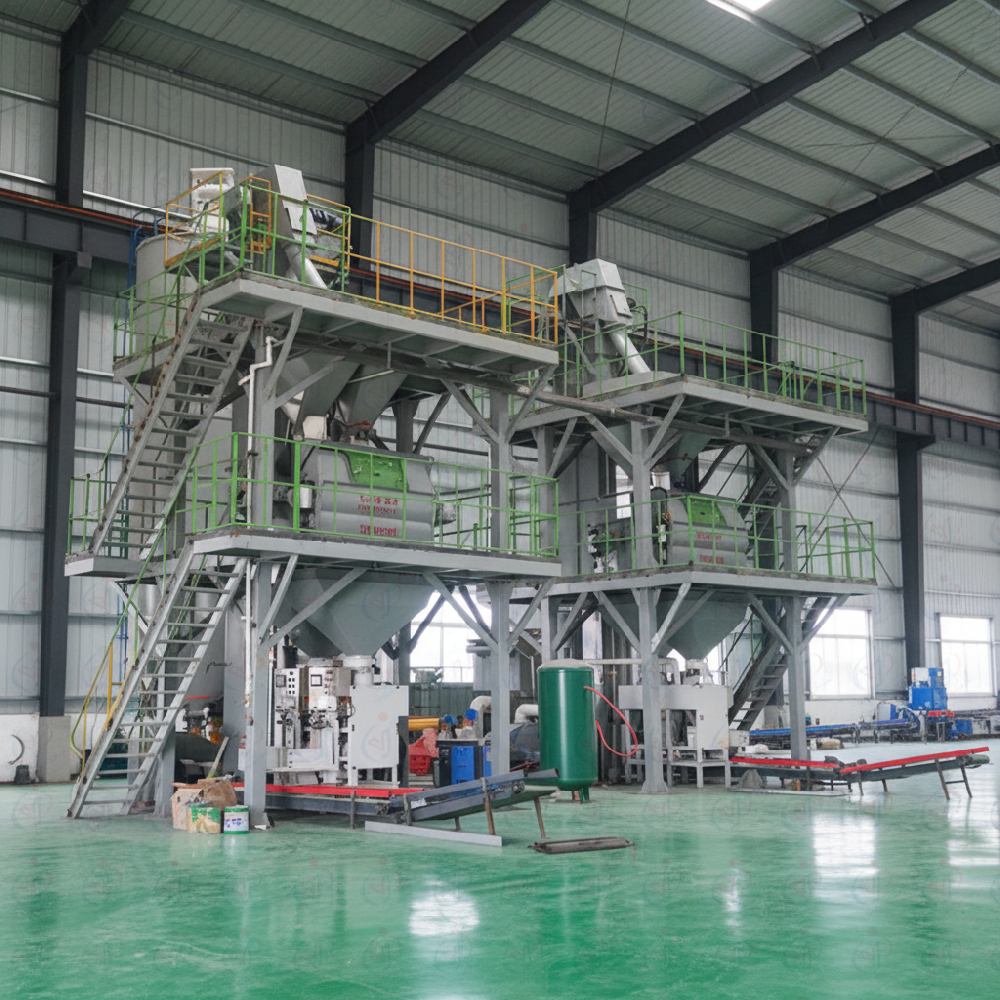

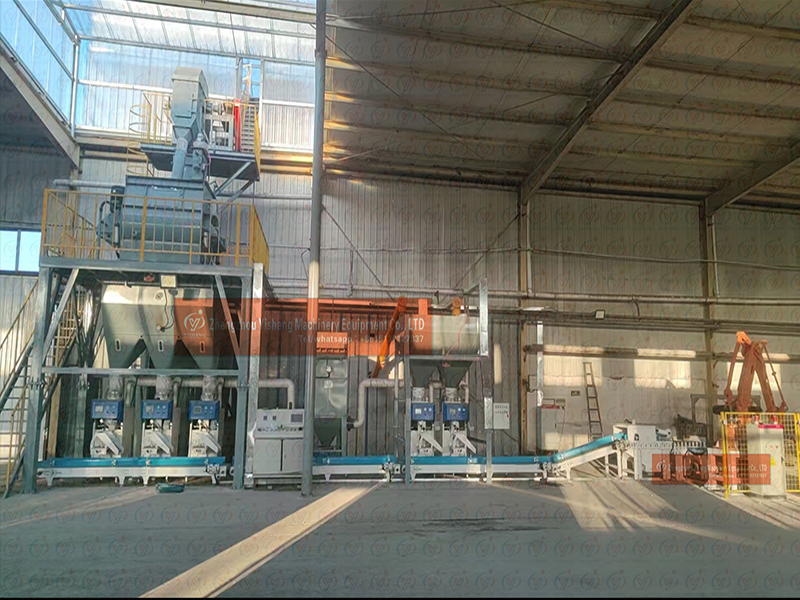

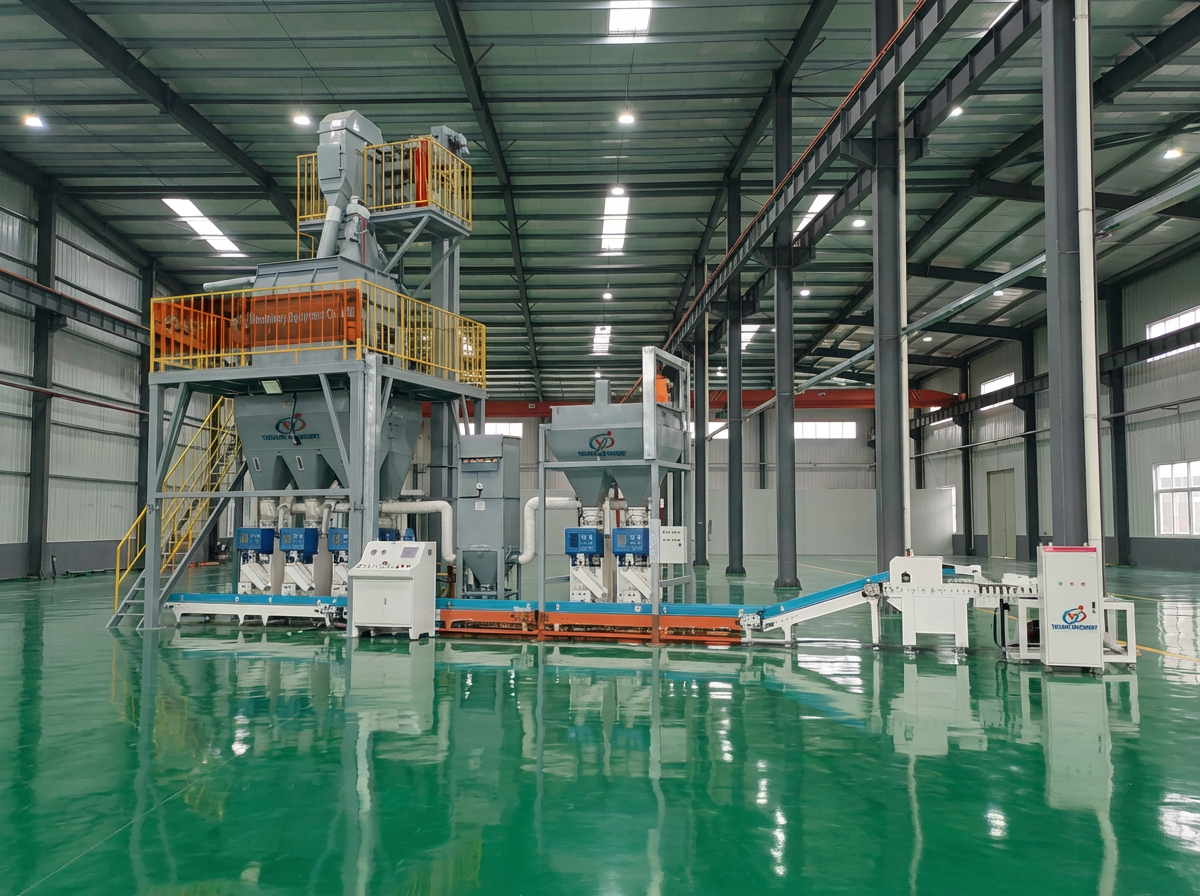

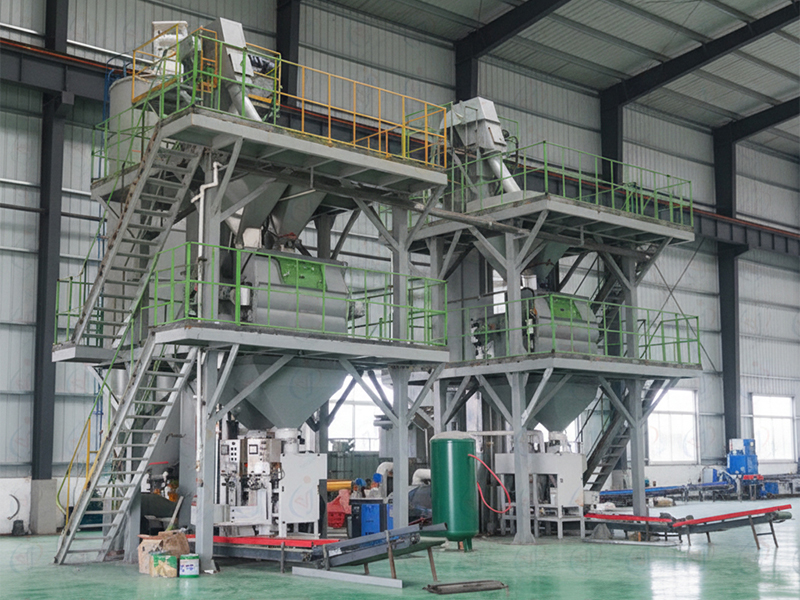

Automatic tower dry mortar production line

Fully Automated Dry Mortar Production Line for High-Quality Ceramic Tile Adhesives

The global construction industry continues to shift toward high-performance ceramic tile adhesives that offer superior bonding strength, water resistance, and ease of application. Zhengzhou Yishang Machinery introduces its Automatic Tile Adhesive Making Machine — a complete dry mix mortar plant specifically engineered for ceramic glue production at industrial scale

This fully automated production line integrates intelligent raw material storage, precision batching, high-efficiency mixing, automatic packaging, and dust collection into a seamless manufacturing system. With PLC-controlled one-button operation, the entire process—from raw material feeding to finished product bagging—runs autonomously, ensuring consistent quality and minimal manual intervention

Why Choose Yishang Automatic Tile Adhesive Production Line?

1. Optimized for Ceramic Glue Formulations

Ceramic tile adhesives require specific formulation characteristics—precise ratios of cement, graded sand, redispersible polymer powder (RDP), and cellulose ether. Our production line is specifically configured to meet these demanding requirements

Application	Key Requirements	Yishang Solution
Standard C1 Tile Adhesive	Bond strength ≥0.5 N/mm²	Precision cement and RDP dosing
C2 Flexible Adhesive	High deformability, freeze-thaw resistance	Advanced additive micro-dosing system
Large-Format Tile Adhesive	Anti-slip, extended open time	Specialized cellulose ether feeding
Rapid-Setting Adhesive	Fast strength development	Gypsum/accelerator proportioning

2. Fully Automatic Production Workflow

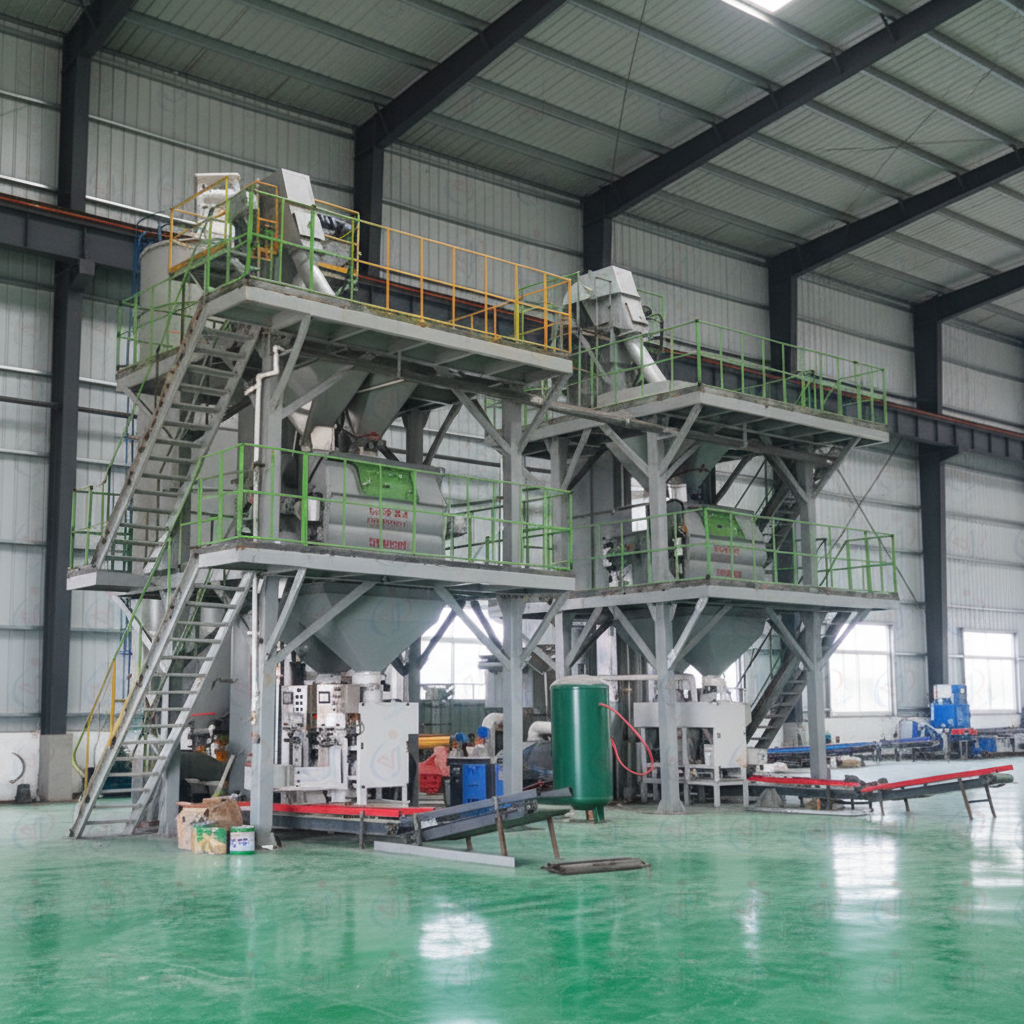

ai (5).png

From raw material intake to finished bagging, every stage is controlled by an intelligent PLC system

Step 1: Raw Material Storage
Cement, sand, and additives are stored in silos equipped with level sensors for real-time inventory monitoring and moisture-proof design to maintain material quality

Step 2: Automatic Batching
High-precision weighing system with load cells measures each material according to stored recipes. Accuracy: ±1% for aggregates, ±0.5% for cement, and ±0.1% for chemical additives

Step 3: Automatic Feeding
Screw conveyors and bucket elevators transfer materials to the mixer in a fully enclosed system to prevent dust pollution

Step 4: High-Efficiency Mixing
Dual-shaft paddle mixer achieves homogeneous blending in 3–5 minutes with no dead zones for uniform adhesive quality

Step 5: Automatic Packaging
Valve bag filling machine with ±0.2kg accuracy; automatic sewing/sealing and date printing

Step 6: Dust Collection
Pulse jet dust collectors at all transfer points ensure a clean working environment and environmental compliance

3. Advanced Dual-Shaft Paddle Mixer Technology

The core of our tile adhesive production line features

No dead corners – Special paddle design ensures all material circulates and mixes completely
High mixing homogeneity – Up to 99.9% uniformity
Efficient cycle time – 90–120 seconds per batch
Pneumatic discharge – Clean, complete discharge with minimal residual waste
Wear-resistant construction – Durable alloy paddles for extended service life

4. Precision Micro-Dosing for Additives

Specialized additives (cellulose ether, RDP, starch ether) are dosed using

Micro-feeding systems with ±0.1% precision
Clog-prevention screw design for smooth material flow
Pneumatic conveying for lightweight powders

5. Intelligent Control System

The centralized PLC + HMI touchscreen interface offers

Multi-recipe storage and quick product changeover

Real-time production monitoring and data logging
Automatic fault alerts and diagnostics
Remote access capability for smart factory integration
One-touch start/stop sequence

6. Flexible Configuration Options

Based on your production scale, we offer multiple configurations

Capacity	Configuration	Automation Level	Best For
3–7 t/h	Simple line	Manual batching, auto packing	Small business, startup
8–10 t/h	Semi-auto line	Auto coarse batching	Medium-scale production
10–15 t/h	Full auto line	Complete auto batching, mixing, packing	Industrial mass production
15–20 t/h	Tower type	Fully automated with silos and palletizer	Large-scale manufacturing
20–35 t/h	Heavy-duty line	Full automation + integrated systems	High-volume industrial plant

Technical Specifications

Model	Capacity (t/h)	Mixer Type	Mixer Volume (L)	Total Power (kW)	Workshop Height
YS-TA-10	8–12	Dual-shaft paddle	2000	80–90	8–10m
YS-TA-15	12–18	Dual-shaft paddle	3000	90–110	10–14m
YS-TA-20	15–25	Heavy-duty paddle	4000	110–130	10–14m
YS-TA-30	25–35	Heavy-duty paddle	6000	130–160	15–20m

Grain size tolerance: Up to 4.75mm
Mixing uniformity: ≥99%
Weighing accuracy: ±0.5% for aggregates, ±0.1% for additives
Packaging accuracy: ±0.2kg

Main Components

Component	Description
Raw material silos	3–6 units for cement, sand, additives; equipped with level sensors
Screw conveyor	Double-pitch design, reduces material compression
Bucket elevator	Plate chain type, dust-free material lifting
Weighing system	Independent scales for aggregates, cement, and additives
Premix silo	Optional for multi-stage mixing process
Dual-shaft paddle mixer	Core mixing unit, no dead corners, pneumatic discharge
Finished product silo	Temporary storage before packaging
Automatic packer	Valve bag filling, 10–50kg/bag adjustable
Pulse dust collector	Environmental protection throughout the line
PLC control panel	Siemens or equivalent, touchscreen interface
Air compressor	For pneumatic valves and cleaning
Robotic palletizer (optional)	Automatic bag stacking for finished pallets

End Products This Machine Produces

Product Category	Specific Products
Ceramic Tile Adhesives	Standard C1 adhesive, C2 flexible adhesive, large-format tile adhesive, mosaic adhesive, rapid-setting adhesive, white tile adhesive
Wall Finishing	Interior wall putty, exterior wall putty, skim coat
Plaster Products	Gypsum plaster, cement plaster, finishing plaster
Masonry Mortars	Masonry mortar, plastering mortar
Flooring Products	Self-leveling compound, screed mortar
Jointing Products	Tile grout, joint filler
Specialty Mortars	Thermal insulation mortar, waterproof mortar, repair mortar

Raw Materials Processed

Cement – Portland cement, white cement
Dried sand – Graded 0.4–0.6mm for tile adhesive, 0.6–1.2mm for plaster
Redispersible polymer powder (RDP) – For flexibility and adhesion
Cellulose ether (HPMC/MHEC) – For water retention and workability
Starch ether – For workability improvement
Calcium carbonate/talc – For filler applications
Gypsum – For plaster products
Pigments – For colored grout and adhesives

Applications

Ceramic tile installation (floor, wall, large-format, porcelain, mosaic)
Natural stone and marble installation
Interior and exterior wall smoothing
Floor leveling and underlayment
Joint filling between tiles
Building facade rendering

Why Zhengzhou Yishang Machinery?

Specialized Expertise – Years of experience in tile adhesive and dry mortar equipment manufacturing
Turnkey Solutions – Complete plant design, equipment supply, installation, and operator training
Global Export Experience – CE-certified equipment serving customers worldwide
Formula Support – Basic tile adhesive formulations provided
After-Sales Service – Engineers available overseas for installation and commissioning
Factory Direct – Competitive pricing with no middlemen
One-Year Warranty – Comprehensive coverage for core components

📞 Tel/WhatsApp/WeChat: +86 15137127837
🌐 Web: www.drymortarmachinery.com

Please inform us of your target capacity and product types. Our engineering team will design the optimal solution for your ceramic glue production needs.
