Automatic tower dry mortar production line

Precision Engineered for High-Standard Adhesive and Plaster Production

The construction industry demands consistency—especially when it comes to ceramic tile adhesives and plaster powders. Zhengzhou Yishang Machinery introduces its Advanced Full Auto Dry Powder Mortar Mixing Machine Equipment, a fully automated production solution specifically optimized for manufacturing high-performance ceramic tile glue, wall putty, plaster powders, and other specialized dry mortars .

This system combines intelligent batching, high-efficiency mixing, and dust-free packaging to help manufacturers achieve superior product quality with minimal manual intervention.

Why Choose Yishang Full Auto Dry Mortar Mixing Plant?

1. Optimized for Tile Adhesive & Plaster Production

Unlike general-purpose dry mortar lines, our system is specifically configured for the unique characteristics of tile adhesives and plaster powders :

Application	Key Requirements	Yishang Solution
Ceramic Tile Adhesive	High bonding strength, water resistance, freeze-thaw durability	Precision additive dosing (±0.5%) for redispersible polymer powder and cellulose
Plaster Powder / Wall Putty	Fine texture, smooth application, crack resistance	High-shear mixing with wear-resistant blades for uniform dispersion
Joint Filler / Grout	Color consistency, non-shrink properties	Dedicated weighing system for pigments and special additives

2. Fully Automatic Production Workflow

From raw material intake to finished bagging, every stage is controlled by an intelligent PLC system :

Automatic Batching – Sand, cement, gypsum, and additives are weighed with high-precision sensors and fed automatically according to stored recipes
High-Efficiency Mixing – Materials enter the dual-shaft gravity-free mixer for rapid, uniform blending (3–5 minutes per batch)
Pneumatic Discharge – No material accumulation, no dead corners, minimal residual waste
Automatic Packaging – Valve bag packing machine with ±0.2kg accuracy, 10–50kg/bag adjustable
Dust Collection – Pulse jet filters capture粉尘 at all transfer points, ensuring a clean working environment

3. Advanced Mixing Technology

The core of our system is the dual-shaft gravity-free mixer, featuring:

Wear-resistant steel blades – Removable and replaceable, extending service life significantly compared to standard steel plate cutting
New advanced reducer drive system – Replaces traditional chain drives, reducing maintenance costs and improving reliability
No dead corners – Specially designed mixing chamber ensures complete material circulation

4. Precision Weighing System

Material Type	Weighing Accuracy	Key Features
Aggregates (Sand, etc.)	±1%	Frequency conversion feeding, auto-compensation
Cement / Gypsum / Fly Ash	±1%	Sensor feedback with real-time calibration
Additives (Cellulose, RDP, etc.)	±0.5%	Micro-dosing screw, high-precision load cells

5. Flexible Configuration Options

Based on your production scale and budget, we offer multiple configurations:

Configuration	Capacity	Automation Level	Best For
Simple Line	1–5 t/h	Manual batching, auto packing	Small business, startup operations
Semi-Auto Line	5–15 t/h	Auto coarse batching, manual additives	Medium-scale production
Full Auto Line (Recommended)	5–50 t/h	Complete auto batching, mixing, packing	Industrial mass production of tile adhesive & plaster
Tower Type Line	55–100 t/h	Fully automated with silos	Large-scale, multi-product manufacturing

Technical Specifications

Model	Capacity (t/h)	Mixer Volume (L)	Mixer Power (kW)	Total Power (kW)	Workshop Height Required
MG-FA-10	8–12	2000	18.5	80–90	8–10m
MG-FA-20	15–25	3000	22	90–110	10–14m
MG-FA-30	25–35	4000	30–37	110–130	10–14m
MG-FA-50	40–55	6000	45	130–160	15–20m

Grain size tolerance: up to 4.75mm

End Products This Machine Produces

Product Category	Specific Products
Ceramic Tile Adhesives	Standard tile glue, flexible adhesive, large-format tile adhesive, mosaic adhesive
Plaster Products	Wall putty powder, gypsum plaster, cement plaster, finishing plaster
Masonry & Rendering	Masonry mortar, plastering mortar (base coat), scratch coat, render mortar
Specialty Mortars	Self-leveling compound, thermal insulation mortar, waterproof mortar, repair mortar
Jointing Products	Tile grout (colored), caulking agent, joint filler

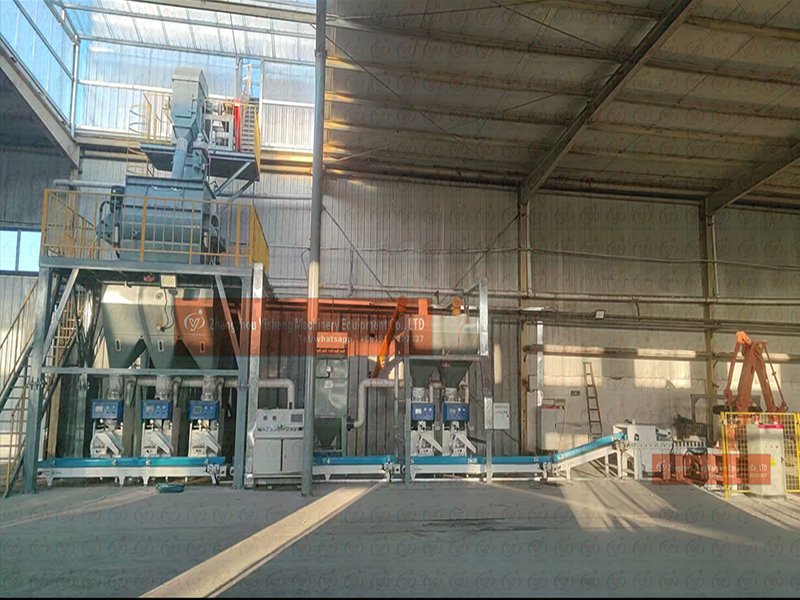

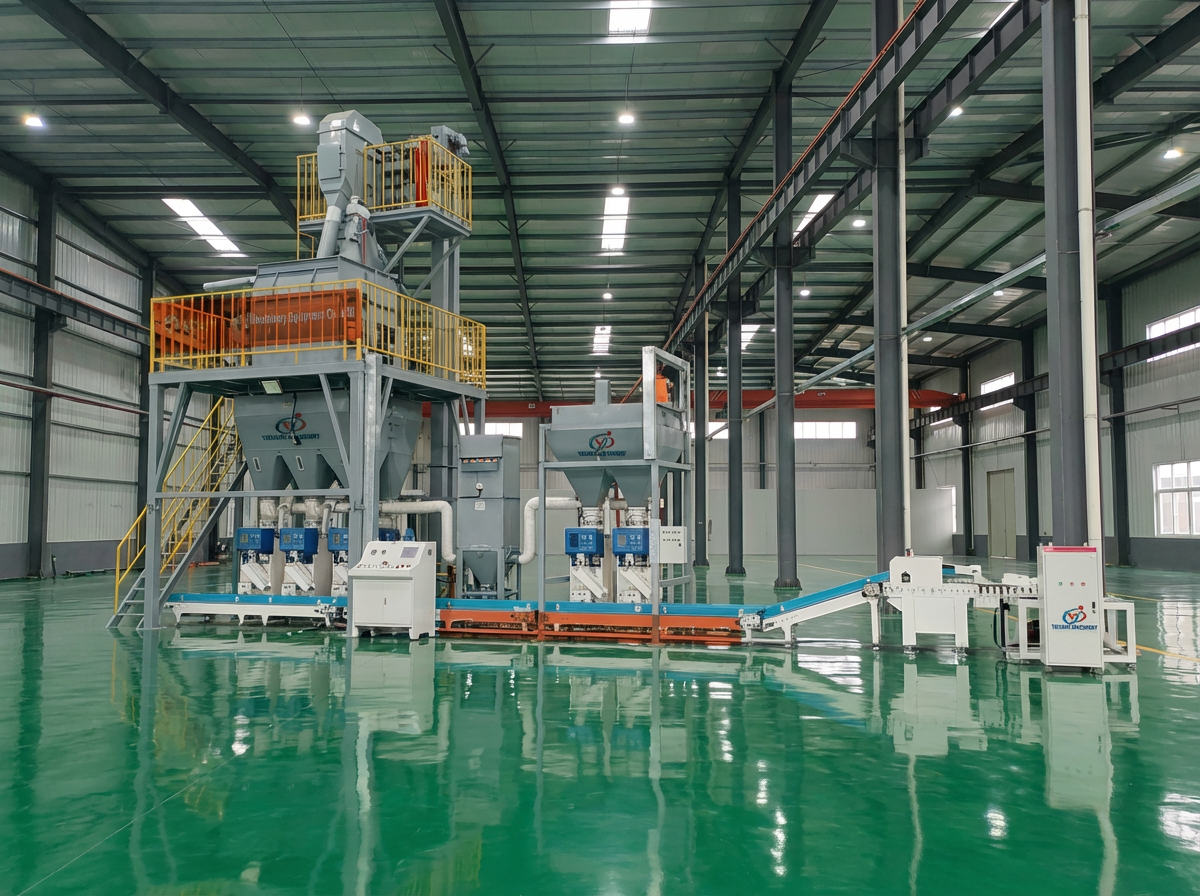

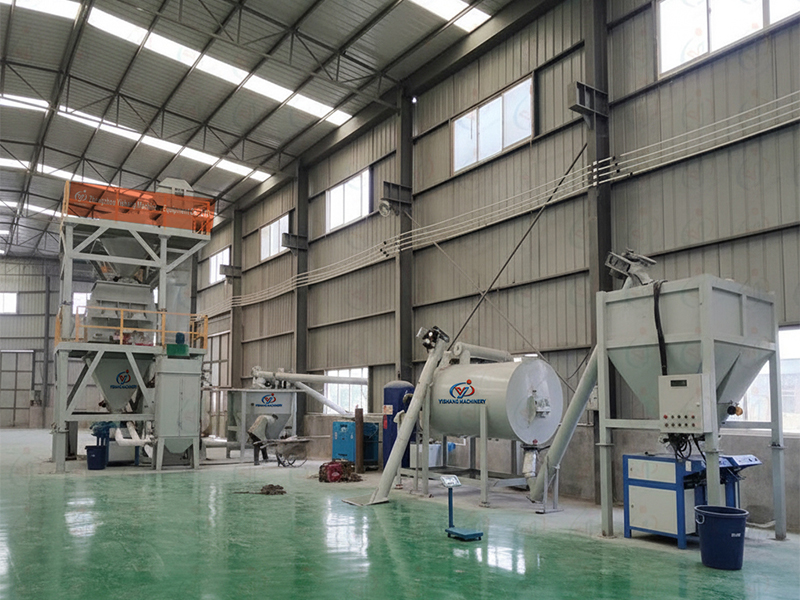

Main Components of the Production Line

Raw Material Storage – Cement silos, sand hoppers, additive bins (customizable quantity)
Bucket Elevator / Pneumatic Conveyor – Dust-free material lifting
Screw Conveyors – For precise additive feeding
Weighing System – Aggregate scale, cement scale, additive scale
Dual-Shaft Gravity-Free Mixer – Core mixing unit
Finished Product Silo – Temporary storage before packaging
Automatic Packaging Machine – Valve bag filler with sewing/closing system
Pulse Dust Collector – Environmental protection throughout the line
PLC Control Panel – Full automation with touchscreen interface
Air Compressor – For pneumatic valves and cleaning

Applications & Raw Materials

Raw Materials Processed:

Cement (Portland, white cement)
Dried sand (0.4–0.6mm for tile adhesive, 0.6–1.2mm for plaster)
Gypsum / Plaster of Paris
Fly ash / Limestone powder
Redispersible polymer powder (RDP)
Cellulose ether (HPMC/MHEC)
Starch ether
Pigments (for colored grout)

End Product Applications:

Ceramic tile installation (floor & wall)
Wall leveling and smoothing
Building facade rendering
Floor underlayment and self-leveling
Joint filling between tiles

Why Zhengzhou Yishang Machinery?

Specialized Expertise – Years of experience in dry mortar equipment manufacturing, with specific focus on tile adhesive and plaster production lines
Turnkey Solutions – Complete plant design, equipment supply, installation, and operator training
Global Export Experience – CE-certified equipment serving customers worldwide
Formula Support – Basic production formulas provided for common mortar types
After-Sales Service – Engineers available overseas for installation and commissioning

📞 Tel/WhatsApp/WeChat: +86 15137127837
🌐 Web: www.drymortarmachinery.com
✉ Email:[email protected]

Please inform us of your target capacity and product types—our engineering team will design the optimal solution for your production needs.
