High-Efficiency Dry Mortar Production for Industrial Scale

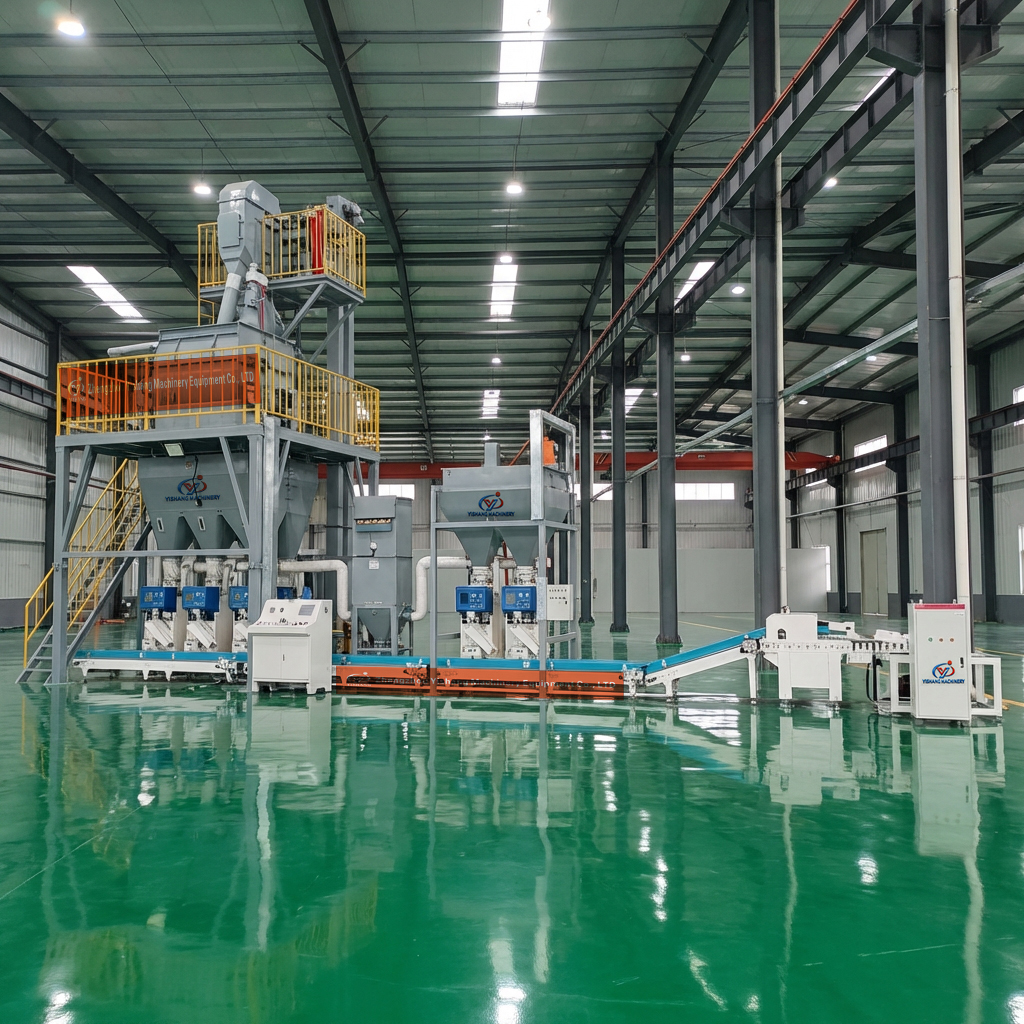

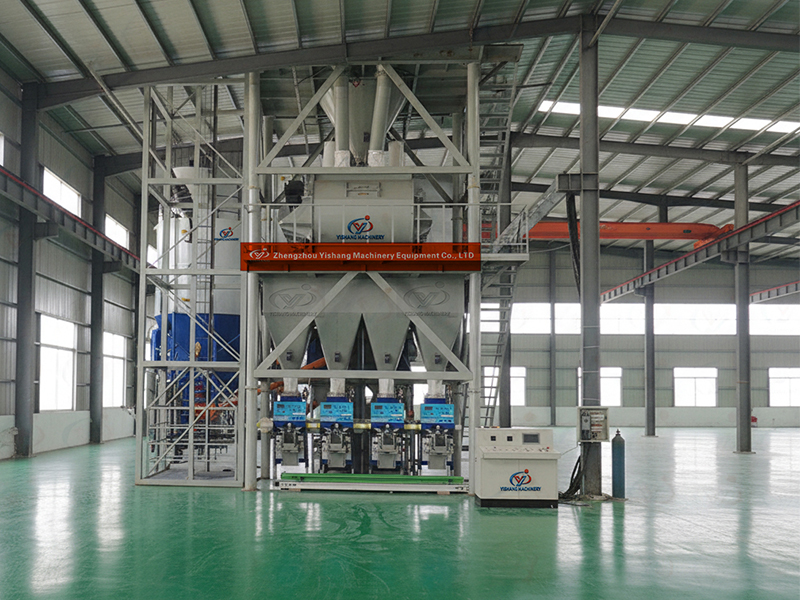

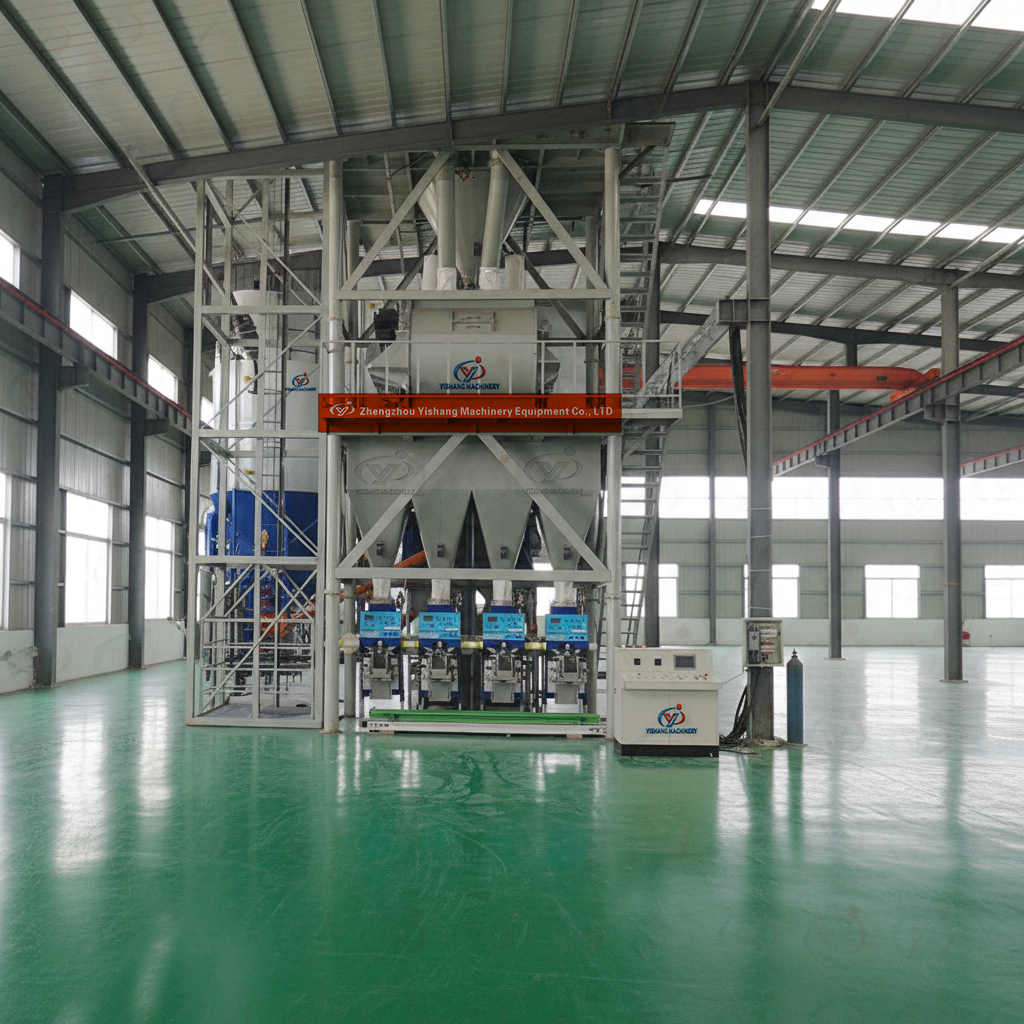

As global demand for high-performance dry mortar continues to rise across construction, renovation, and infrastructure sectors, Zhengzhou Yishang Machinery introduces its advanced Large Capacity Dry Cement Mortar Mixture Machine Plant. This industrial-grade production system is specifically engineered for manufacturers seeking to produce everything from basic masonry mortar to specialized products like tile adhesives, self-leveling compounds, thermal insulation mortar, and waterproofing materials.

Why Choose Yishang Dry Mortar Plant?

Our dry mortar production line represents a complete ecosystem combining automated control systems, energy-efficient drying technology, precision weighing, and environmental protection features—all designed to maximize your return on investment.

1. High Capacity Output for Mass Production

The plant supports hourly outputs ranging from 5 to 50 tons, with annual production capacities customizable from 10,000 to over 100,000 tons depending on configuration. Whether you supply large-scale real estate projects or industrial flooring applications, Yishang equipment ensures 24/7 continuous operation with consistent quality.

• Tower type design: Compact structure, minimal footprint, ideal for large-scale production

• Step type design: Lower building height, flexible expansion space, lower initial investment

2. Industrial-Grade Weighing and Mixing Accuracy

For industrial building material production, formula precision is critical to product quality.

• High-precision weighing system: Frequency conversion feeding technology with accuracy of ±1% for aggregates and ±0.5% for additives

• Efficient mixing system: Dual-shaft paddle mixer or ribbon mixer options with wear-resistant alloy blades, achieving 100% homogeneity within 60–120 seconds with minimal residue

• Plough mixing device option: Mixing ratio up to 1:10,000 with variable frequency operation, reducing energy consumption by up to 25%

3. Advanced Drying System

The three-pass rotary drum dryer accepts multiple fuel types including gas, heavy oil, and coal. Key specifications:

• Output material moisture content: <0.5%

• Discharge temperature: ≤65°C

• Double-return drying and cooling drum design improves thermal efficiency while reducing footprint

4. Automated Control for Production Excellence

The PLC-based control system with touchscreen interface enables:

• One-button start/stop sequence

• Real-time production data monitoring

• Fault alarm and diagnostics

• Optional dual-computer synchronization for critical operations

• Recipe storage for multiple mortar types (masonry, plastering, tile adhesive, self-leveling, insulation, etc.)

5. Environmental Compliance

• Fully enclosed production from raw material intake to finished packaging

• Pulse jet dust collection system throughout the line

• Compliant with international environmental standards

• Optional under-cover storage area for raw materials to prevent moisture and reduce dust

Technical Specifications

Applications

Our dry mortar production plant manufactures a wide range of products:

• Masonry mortar and plastering mortar

• Tile adhesive and grout

• Self-leveling floor compounds

• Thermal insulation mortar

• Waterproof mortar and repair mortar

• Colored coating mortar and gap filler

Raw Materials Processed

Cement, sand, fly ash, gelatine powder, cellulose, redispersible polymer powder, and various chemical additives.

Why Zhengzhou Yishang Machinery?

With years of expertise in dry mortar equipment manufacturing, Yishang Machinery delivers:

• Turnkey solutions: From plant design to installation and commissioning

• OEM/ODM services: Custom configurations for your specific production needs

• Global export experience: CE certified equipment ready for international markets

• After-sales support: Installation guidance, operator training, and spare parts supply

Contact us today to discuss your dry mortar production requirements. Our engineering team will provide a customized solution optimized for your capacity needs and budget.

📞 Tel/WhatsApp/WeChat: +86 15137127837
🌐 Web: www.drymortarmachinery.com
✉ Email: [email protected]
