How does dry mortar production line work?

2022-09-21

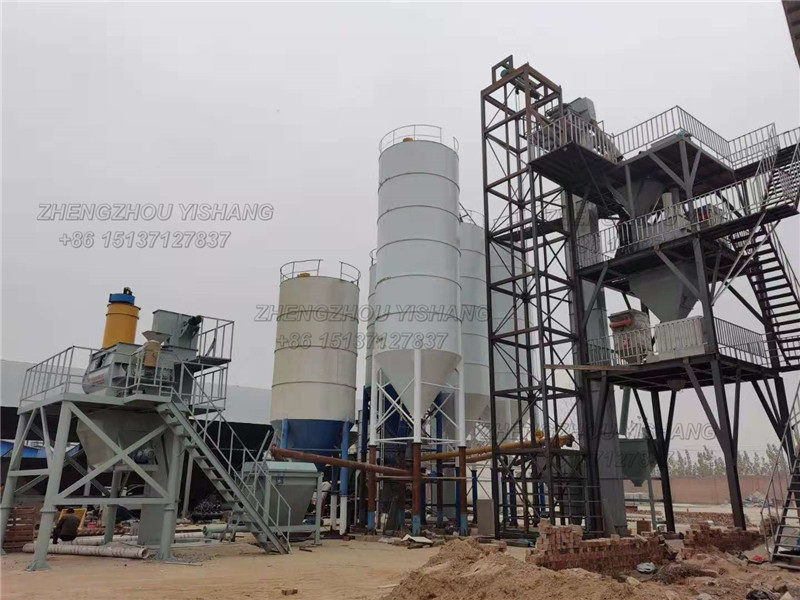

dry mortar production line

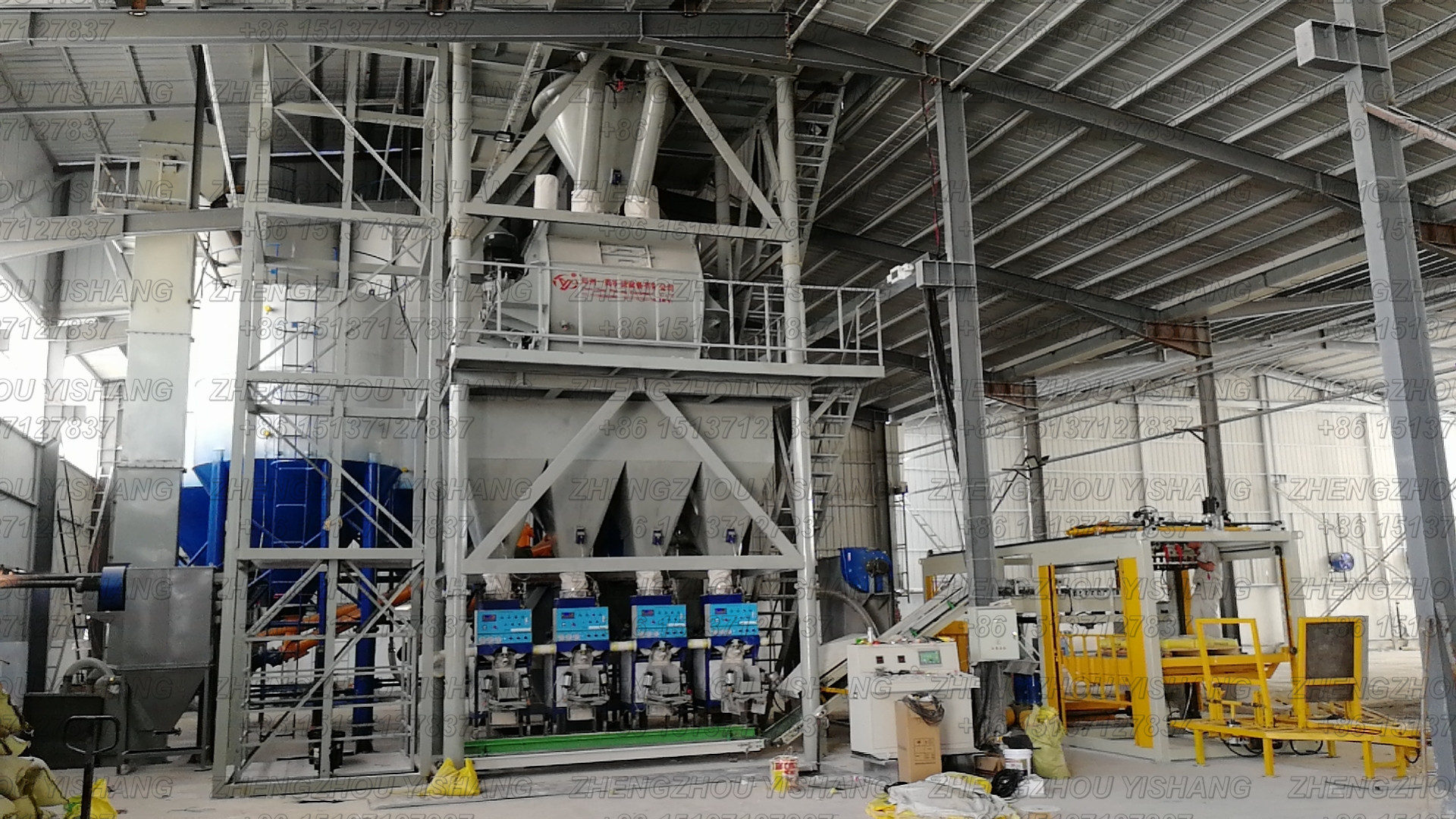

dry mortar production line

Before the test machine must be the first set of dry mortar production line all reducer refueling (according to the standard), the dry powder mortar production line needs refueling single machine:

① conveying pump reducer

② batching bucket

③ bucket lifting machine

④ dual-shaft mixing machine

⑤ finished product warehouse reducer

⑥ air compressor.


Horizontal ZQ series 350 reducer add 8 kg gear oil, horizontal ZQ series 400 reducer add 12 kg gear oil, cycloid needle reducer need to add 46# oil (can be replaced by diesel oil).

Connect all motor lines, connect the pneumatic control line to the power distribution cabinet, and then try to turn one by one, adjust the steering, weigh the ingredients, and prepare for production after debugging the valve port packing machine.


 First of all, open the bucket elevator, air compressor, dust collector, start the ingredients said bucket began to work, and will be matched with good materials from the bucket to be mixed warehouse.


Start the dual-shaft gravity-free mixer and start the finished product bin motor.


After working for 3-5 minutes, start the power supply of the finished product bin, open the valve of the biaxial gravity-free mixer, and put the material into the finished product bin for packaging.


When the pneumatic valve button is released, the pneumatic door is closed and the bucket elevator is started for the second batch of feeding.


Complete the required output in turn (the biaxial gravity-free mixer and the finished product bin are always running when working).


Zhengzhou Yishang Machinery Equipment Co., Ltd. has been engaged in the research and development of dry mortar machinery design and production, our company research and development design and production of a variety of dry mortar production line complete sets of equipment; Specializing in the production of the series of equipment are: dry mortar production line, the dry mortar mixer, biaxial zero gravity mixing machine, dry mortar mixer, biaxial paddle mixer, colter mixer, putty powder mixer, really stone paint mixers, really stone paint mixing machine, sand dryer, quartz sand dryer, river sand dryer such as automatic metering packaging weighers, pulse dust collector series of equipment. These equipment has been widely used in construction, building materials, chemical, powder, mortar, paint, metallurgy, environmental protection and other industries in the field of first-class enterprises, and has been praised by the majority of users!


Our company is specialized for dry mortar production line, the dry mortar mixer, dry mortar mixing equipment such as complete sets of equipment to provide design, installation and debugging, and according to the different conditions and requirements of each customer (investment scale, the condition of plant condition, material type, logistics, product formula, etc.), to provide professional and reasonable solution. Please contact Tel/whatsapp: +8615137127837
