Palletizer

Automatic column rotary bags palletizer system

palletizing machine equipment bagging plant robot stacking machine

Product Description

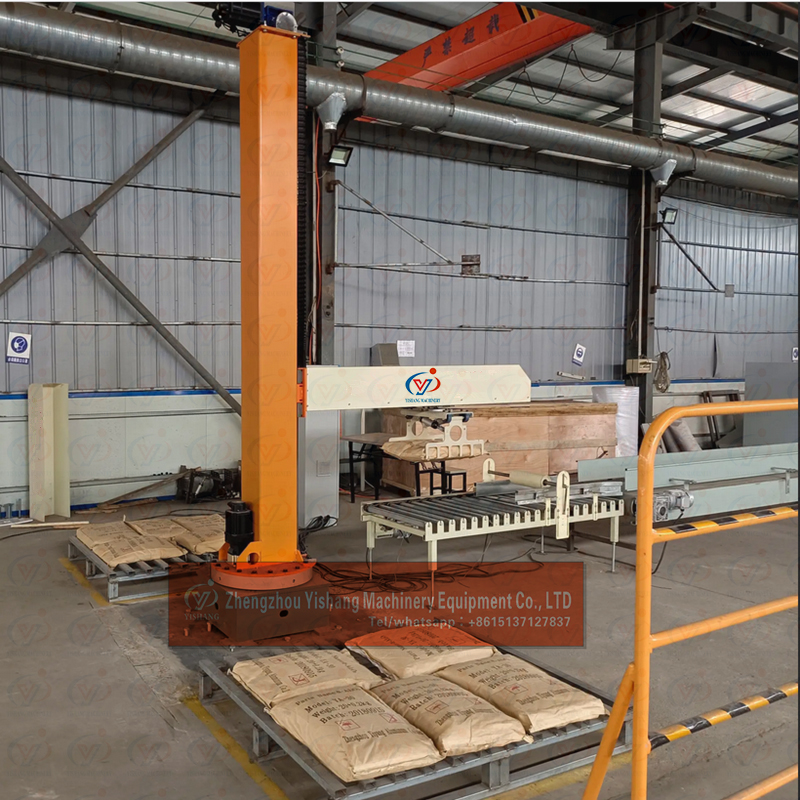

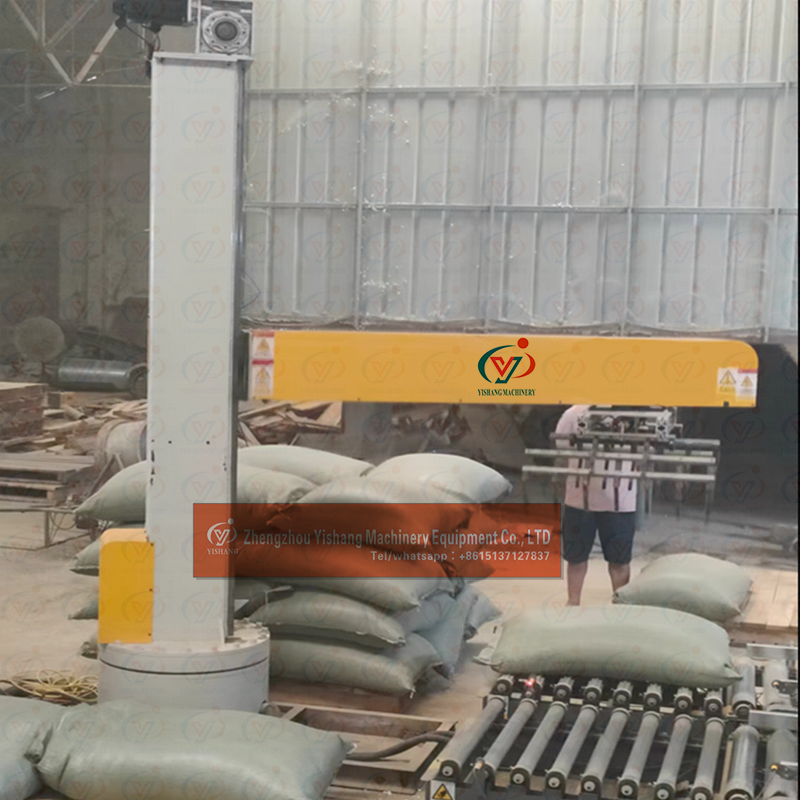

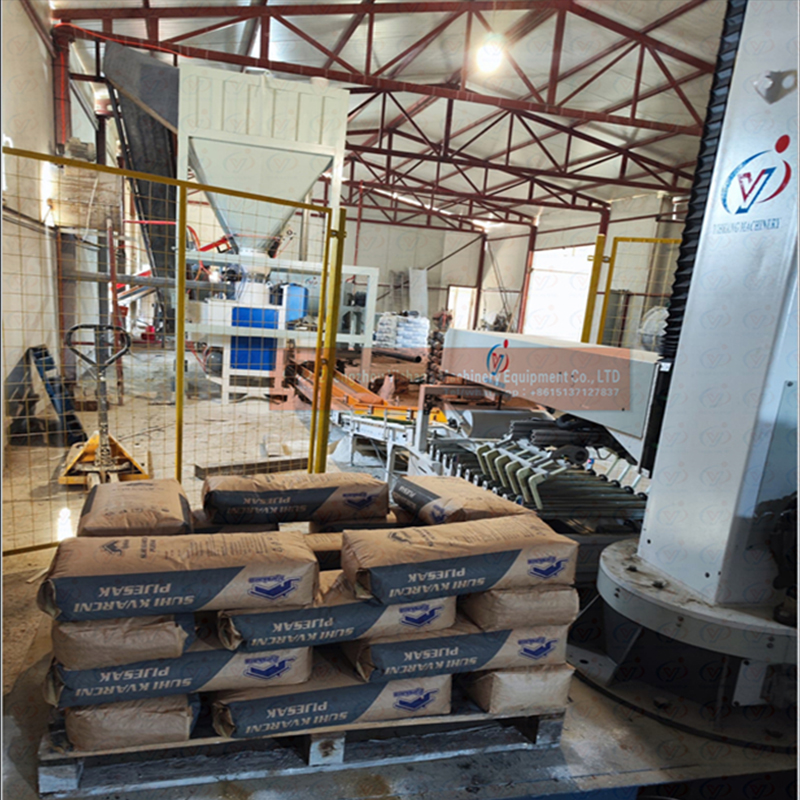

Automatic column rotary bags palletizer system

This is automatic column rotary bags palletizer system ,according to the site situation of your company and the space size of the working area, the installation position of the pallet-stacking machine is designed. The equipment parameters can be changed according to the user's requirements. The pallet-stacking layer can be modified according to the customer's requirements.

Column type palletizing machine robot palletizing machine has 3 by degrees, respectively for the vertical direction of movement, horizontal direction of movement and vertical direction of rotation. The main features of the equipment are:

1. Full servo drive, more accurate movement, faster action

2. Well configured, easy to use

3. Excellent selection of materials, durable

4. Reasonable structure, easy to operate and maintain

Model	YS-400	YS-600
Palletizing Speed	400 Bag/Hour	650 Bag/Hour
Host Size	320022003000mm	350024003200mm
Device Power	7.5kw	11kw
Supply Power	3*AC38+N	3*AC38+N
Palletizing Height	600-1600mm	600-1600mm
Palletizing Layer	1-10 Layer	1-12 Layer
Pelletizing Station (Number of palletizing bags per layer )	3-12	3-12
Gas Supply Pressure	0.6-1.0Mpa	0.6-1.0Mpa
Weight	3000kg	3400kg
Pallet location	Four flower stack, five - flower stack, liushun stack, etc	Four flower stack, five - flower stack, liushun stack, etc

Equipment advantages

Intelligent stacker features German technology, low failure rate;Host highly integrated integration;Servo motor drive, gear drive;Simple and durable structure;Automatic oiling maintenance;Low noise;Precise control and various stack types.

1. High efficiency of automatic palletizer

2. Exquisite palletizing

3. Intelligent alarm

4. Stacking a variety of styles according to customer requirements.

5. Low requirements on working environment

6. Save stacking time,Simple operation

Product details

Conveying system

1.Grab and wait conveyor

2.Mechanical reverse conveyor

3.Square pipe vibrating conveyor

4.Leveling conveyor
