Palletizer

Full-automatic 25kg bag automatic robot palletizer tray bag palletising machine pallet column rotary bag palletizer

pallet bag palletizer

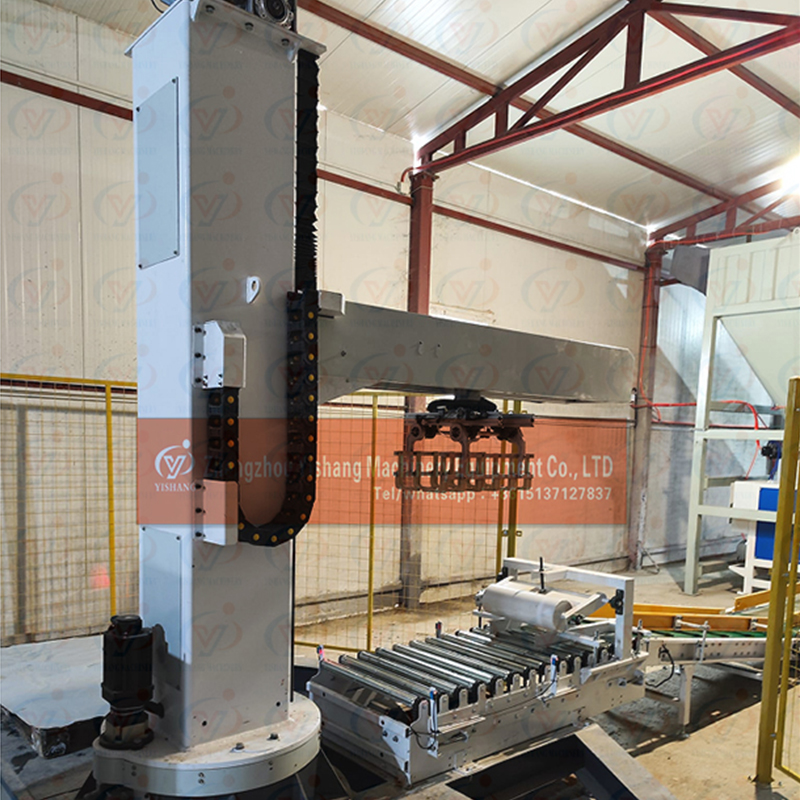

Single column rotary palletizing robot bag palletizer is mainly used in the back end of the bag industry production line palletizing, with 3 degrees of freedom, respectively, vertical direction movement, horizontal direction movement and vertical direction rotation.


Technical characteristics
1, full servo drive, more accurate movement, faster action.
2, advanced configuration, safe and reliable.
3. Excellent material selection and durability.
4, high quality electrostatic spraying treatment.
5, reasonable structure, easy to operate and maintain.


Working principle

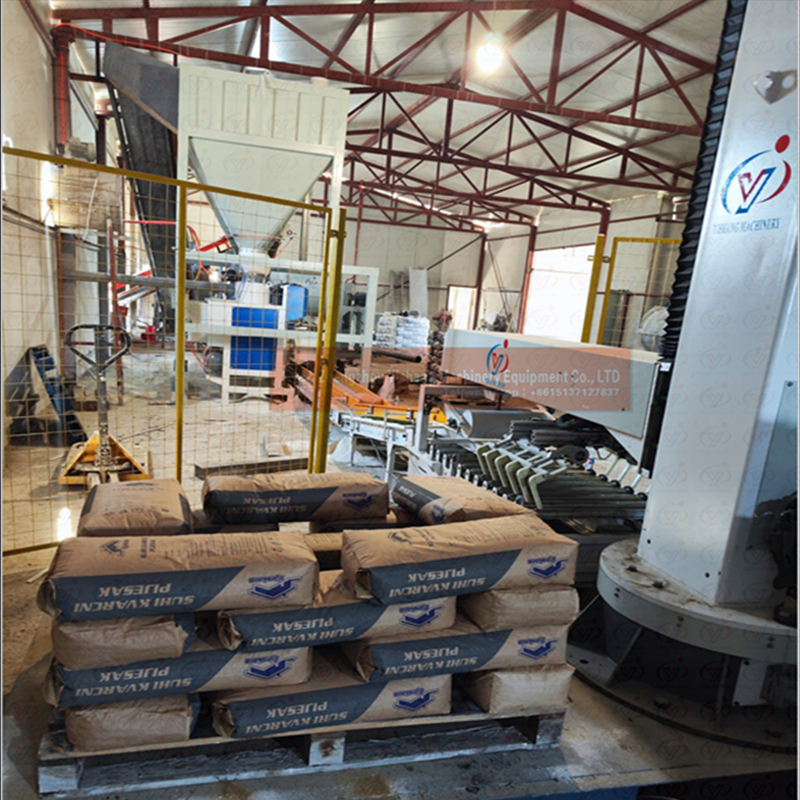

The palletifier of the structure can move freely and accurately in the vertical direction and the horizontal direction respectively, and the roller gripper can rotate freely in the range of 90°. The assembled products push the rolling shutter gripper from the entry position, and the rolling shutter gripper will stabilize the product so that the product is not loose. Driven by three servo motors, the rolling shutter gripper moves the set distance and Angle synchronously in the vertical direction and horizontal direction, so that the rolling shutter gripper moves to the position that has been placed on the pallet. The rolling shutter gripper opens the curtain, and the product falls to the pallet. After all the products fall, the rolling shutter gripper moves up in the reentry to the stomping position. In the process of reentry, the rolling shutter gripper closes the rolling shutter. The process repeats itself.


Technical parameter
production capacity :5 floors/min

power supply:220/380V  50HZ

horizontal Angle :±1°

noise working;≤85 dB

pressure min:0.6Mpa

consumption max:100L/min


Industrial application

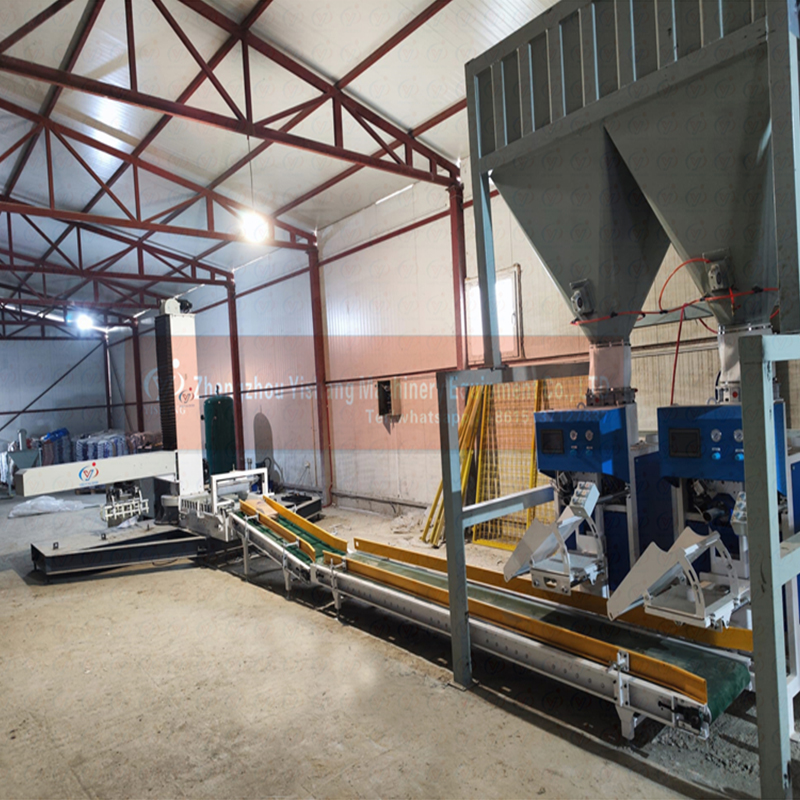

Single column palletizing robot is used for packaging of bags and other industries after the whole layer palletizing
