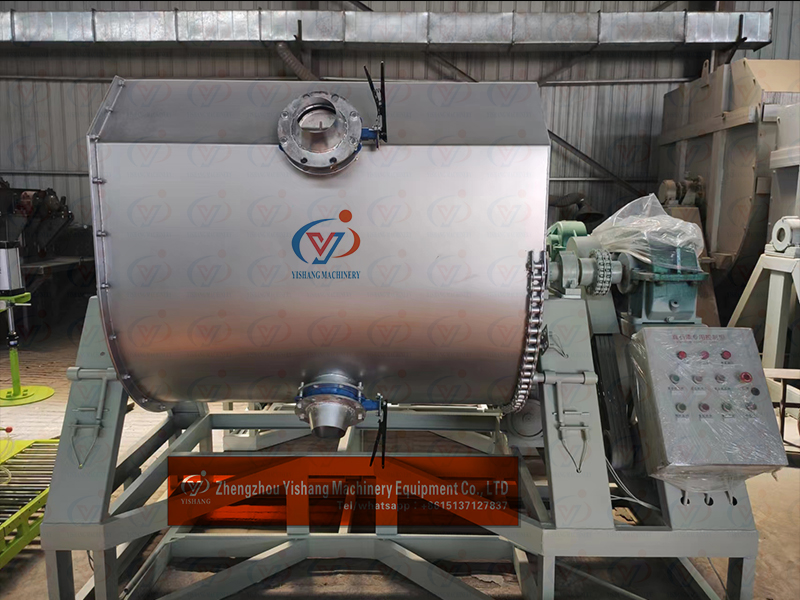

Stone texture paint mixer, liquid mortar mixing machine

Working principle:

The stone texture paint mixer / liquid mortar mixing machine adopts horizontal, cylindrical or U-shaped appearance design, and adopts double or multi-layer compound screw belt design inside. That is, two or more screw belts with the same conveying capacity, different screw diameters and different screw directions are installed on the horizontal spindle. Usually when the spindle rotates, one screw belt transfers the material from left to right, and the other screw belt transfers the material from right to left. Therefore, the convection interpenetration mixing occurs in the machine to achieve the purpose of uniform mixing.

Equipment features:
1, the equipment can make the material three-dimensional tumbling when running. Smooth operation, reliable quality, low noise, long service life, easy installation and maintenance, a wide range of multi-functional mixing equipment.
2, the mixing speed is fast and the mixing uniformity is high, especially the viscosity is more suitable for thick and mushy mixing.
3, under the mixing requirements of different materials, different spiral belt structures are used
4, the horizontal body can also be provided with a movable door for the user to clean the material.
5, the equipment is economical and applicable, is the chemical industry, paint, putty, paste high humidity material mix ideal products. Real stone paint mixer semi-automatic feeding, powder has a special screw elevator, liquid has a special suction pump.
6, this equipment is suitable for small and medium-sized investors, covers a small area, save time and labor, smooth operation, simple operation, is currently more advanced chemical production equipment.

Installation, commissioning and use:
1. Please read the instructions carefully before installation and install and use according to regulations.
2, fixed unit: unit installation should ensure that the unit base is placed horizontally (such as uneven pad flat), otherwise it is easy to cause the unit to shake.
3. Check whether the screws in each connection part are loose.
4, power supply, switch, wire should be reliable insulation, easy control, do not use fuses or fuses that do not meet the rated current of the motor supporting the unit. 7.5 The motor above must be equipped with overload protection device.
5, empty machine (without load) check the motor rotation direction, the motor should be rotated in the direction specified by the sign arrow, otherwise it may damage the machine, if the steering is not correct, you can replace the motor any two arrow positions.

Equipment operation instructions:
1. Add some tap water first.
2, in order to add a variety of chemical raw materials, fibers, etc.
3. Add color sand and stir for several minutes before loading into the finished product bucket.
4. If the finished material at the bottom of the mixing barrel is not clean, the cylinder can be turned to 90° to discharge the remaining material and achieve zero residue.

Safety Matters (of particular importance)
For your own safety and the normal use of the unit, please pay attention to the following:
1, the unit must have grounding and leakage protection devices to ensure the personal safety of the staff.
2, when the machine is running, the hand, the rod, the iron is strictly forbidden to go into the machine, and the machine maintenance door must not be opened.
3. When manual feeding is used, the hand should be far away from the feeding port to ensure the personal safety of the staff.
4. The machine is strictly prohibited from mixing flammable and explosive materials.
5, the machine should be installed away from the fire, ventilated and transparent place.
6, do not use minors or people with health disorders to operate the machine
