Automatic tower dry mortar production line

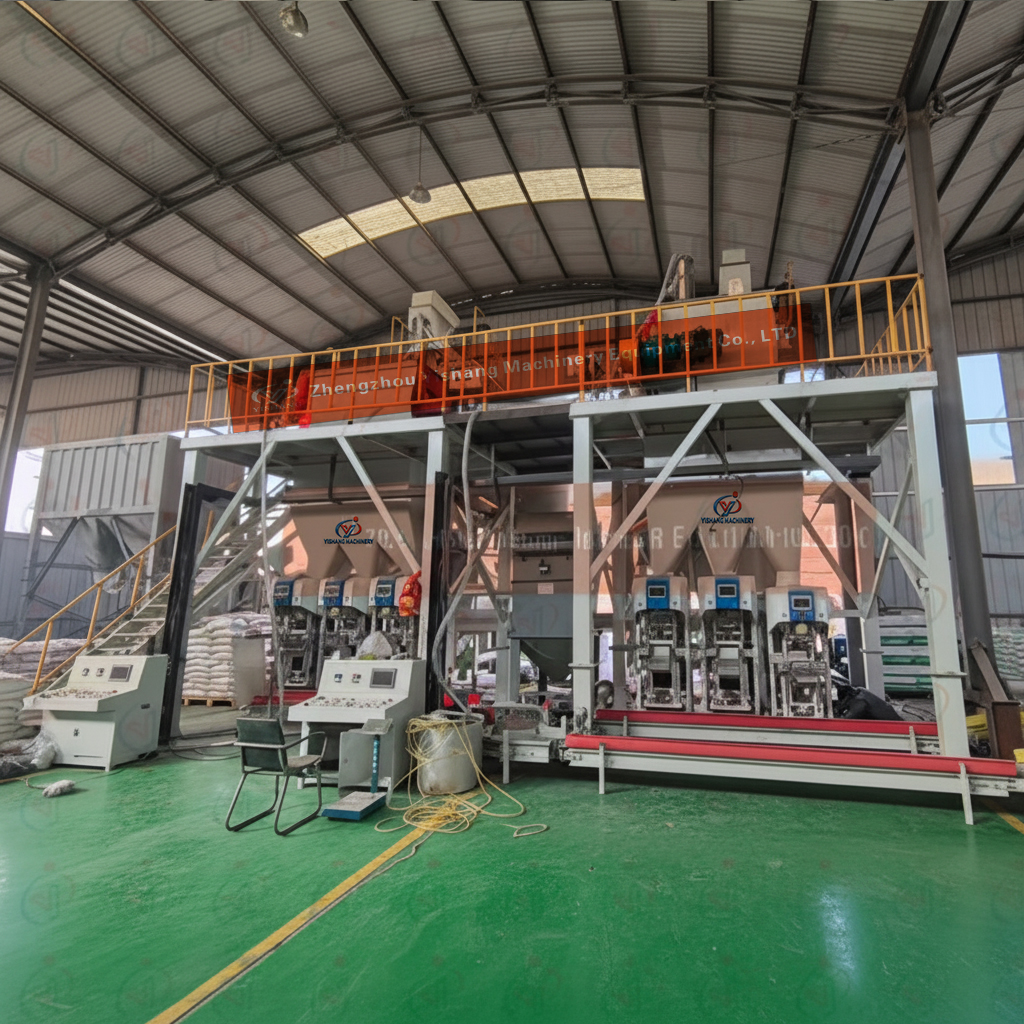

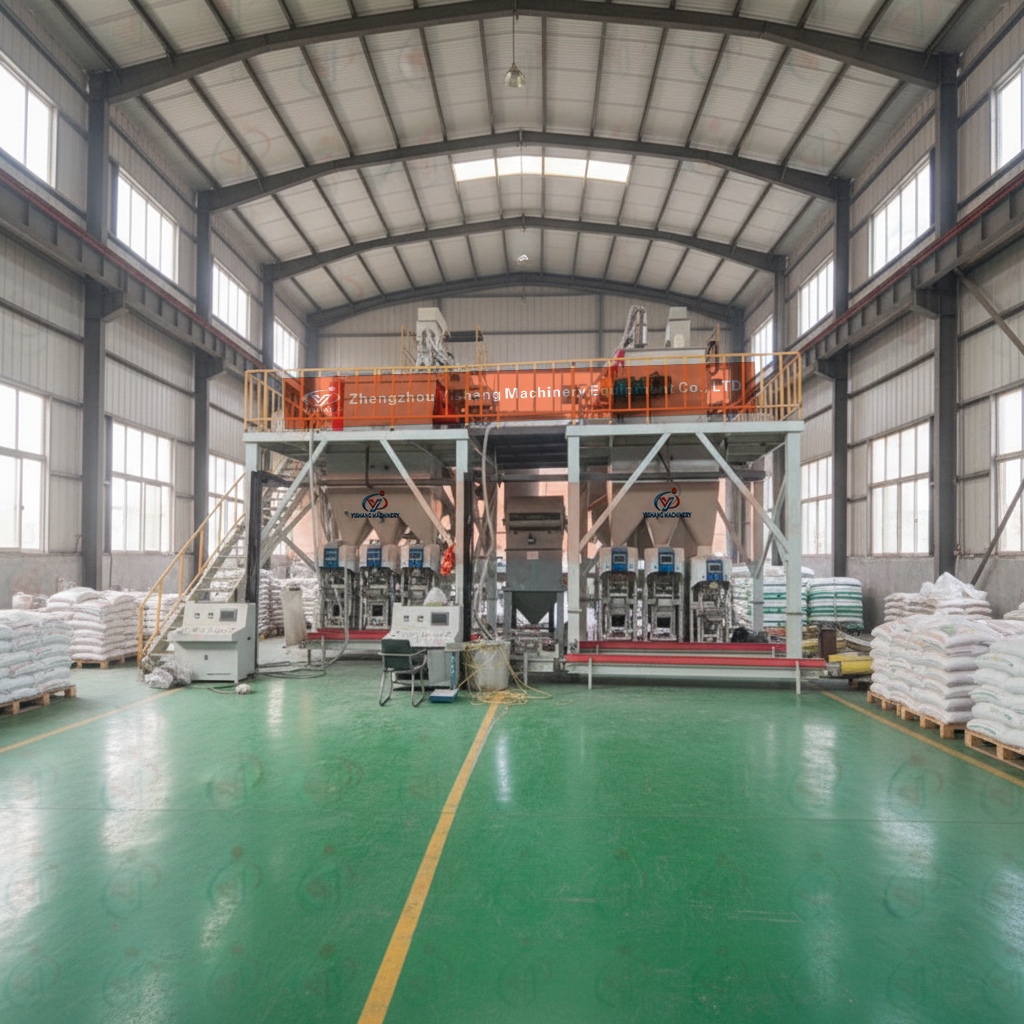

Dry Mortar Production Line – Fully Automatic Dry Mix Mortar Plant

Smart, Complete & Ready to Produce

Make tile adhesive, wall putty, plaster, grout and self-leveling compound with one fully automatic line. From powder to packed bag – all in one system.

Capacities: 3 – 55 tons/hour | Annual output: Up to 140,000+ tons

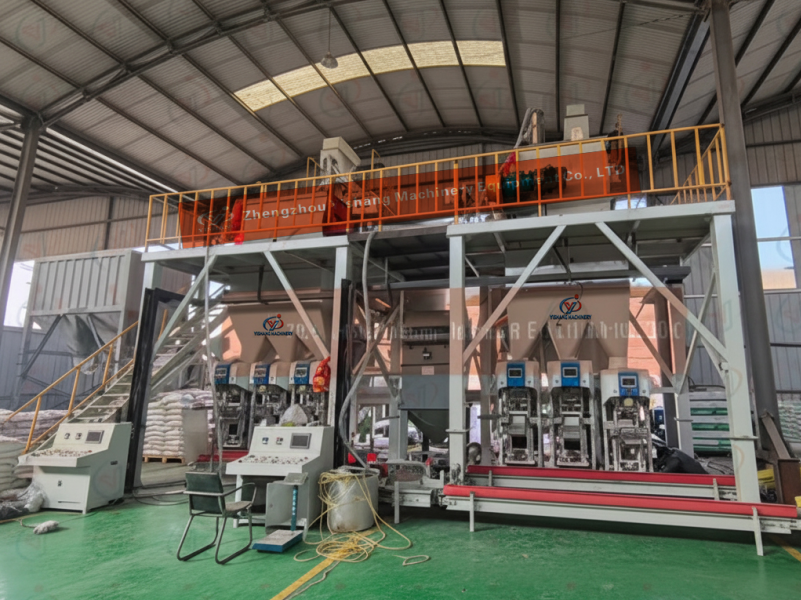

Dry Mix Mortar Plant.png

What You Get (Complete Line)

Component	Function
Raw material silos	Store cement, sand, additives
Automatic batching	±0.5% additive accuracy
Dry Powder Mortar Mixer Machine	99% uniformity, no dead zone
Finished product silo	Temporary storage
Auto packer	±0.2kg, 10-50kg/bag
Dust collector	Clean & safe
PLC + HMI	One-button operation

One Machine – Many Products

✅ C1 / C2 Tile Adhesive
✅ Interior & Exterior Wall Putty
✅ Gypsum / Cement Plaster
✅ Sanded & Unsanded Grout
✅ Self-Leveling Compound
✅ Masonry & Repair Mortar

Why This Dry Mortar Production Line?

Feature	Benefit
Fully automatic	2–3 workers per shift only
99% mixing uniformity	Every batch the same quality
±0.5% additive accuracy	Save expensive RDP & HPMC
Recipe storage	Switch products in 5 minutes
Dust-free	Clean workshop, happy workers
Turnkey	We design, supply, install & train

"We deliver a complete Dry Mix Mortar Plant – not just a mixer."

Technical Snapshot

Model	Capacity (t/h)	Mixer Type	Mixer Power (kW)	Workshop Height
YS-DPM-5	4-6	Ribbon / paddle	11-15	6-8m
YS-DPM-15	12-18	Dual-shaft paddle	22-30	10-14m
YS-DPM-30	25-35	Heavy-duty paddle	37-45	15-20m

*Other models: 3, 8, 20, 50 t/h also available.*

What's Included in Turnkey?

📐 Free plant layout
🏭 All equipment (silo to packer)
🔧 On-site installation & commissioning
👨‍🏫 Operator training (PLC + HMI)
📋 Basic formulations provided
🛠️ Spare parts kit
📞 Lifetime remote support
✅ 1-year warranty

Quick Comparison

Feature	Basic Line	Fully Automatic Line
Batching	Manual	PLC auto
Additive accuracy	±2%	±0.5%
Operators	4-6	2-3
Daily output	20-30 tons	50-80 tons
Product consistency	Variable	Excellent

Why Yishang?

🏭 10+ years dry mortar equipment experience
🌍 Exported to 30+ countries
💰 Factory direct – no middleman
🔧 Engineers available overseas
📦 Fast delivery: 15-30 days

📞 Tel/WhatsApp/WeChat: +86 15137127837
🌐 Web: www.drymortarmachinery.com
✉ Email: [email protected]

Tell us your target capacity and products. We'll design your Dry Mortar Production Line – ready to run.
