Automatic tower dry mortar production line

Automatic dry mortar plant

Product Description

Equipment introduction:

The automatic dry mortar plant is mainly composed of the following equipment:

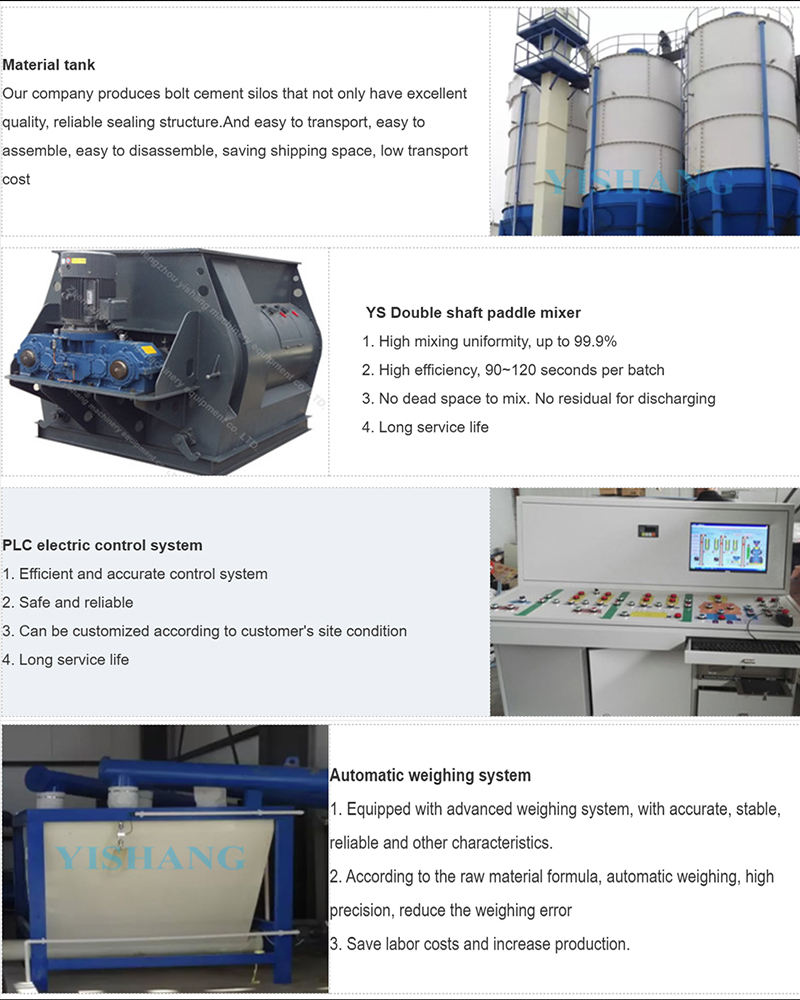

1. Raw material silo

Automatic Skim Putty powder making production line generally using silo to store raw materials, using tank truck feeding. During construction, only two small storage silo of raw materials are needed to store additive raw materials, such as rubber powder and HPMC.

2. Batching and weighting equipment:

The batching scale can automatically measure different raw materials according to the formula, which can reduce labor intensity and environmental pollution, and also ensure the product quality of putty powder.

3. Mixing machine:

Automatic Skim coat making machine production line double shaft blade gravity mixer, etc. The requirements for putty powder mixer are: uniform mixing, no dead Angle, high efficiency, wear-resistant equipment, fast unloading speed. Recommendation: Gravity free mixer - suitable for dry powder mixing, can also be added on request "flying knife".

4. Packing machine:

Wall putty packing machine are two types: open pocket and valve pocket. Putty powder is used more by valve pocket packing machine, because valve pocket packing does not need seam, as long as one person can operate, but this packing machine is not suitable for packaging light material, bag cost is slightly higher, but the packaging speed is fast. Open pocket packing scale can pack all kinds of materials, but need seam after bagging. Bags cost less (they can be recycled), but they are slower to be packed. Compared with the valve pocket packing machine, the operator needs to increase by one person.

5. Dust collector:

Used for recycling dust in dry mortar production line, which is beneficial to environmental protection. Generally located in the cement bin top, hoist inlet, etc.

Recommended equipment: pulse dust collector

6. Conveying and lifting equipment:

For the material transport in the production line bin: horizontal transport and vertical transport, horizontal transport can use screw

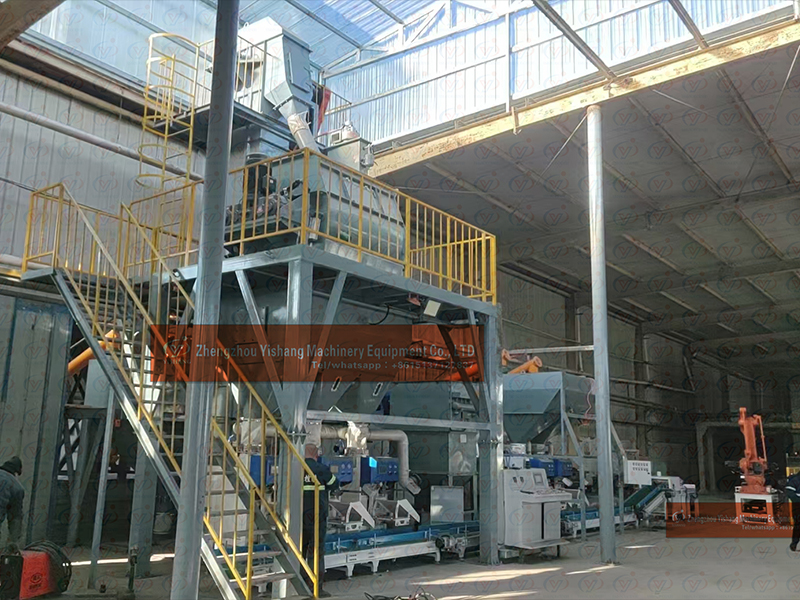

7.Full automatic bag stacking system

automatic bags palletizer system ,according to the site situation of your company and the space size of the working area, the installation position of the pallet-stacking machine is designed. The equipment parameters can be changed according to the user's requirements. The pallet-stacking layer can be modified according to the customer's requirements.

Product details

Packaging & Shipping

(1)FCL: export equipment standard container

(2) wooden box: The size of the packing box shall be designed according to the equipment

The widget is attached to the machine

Soft wood is placed in front or back of the machine to protect it.

The plastic film is covered in this machine for waterproofing

The equipment into the container with the crane

company service

Pre-sales service:
Design - discuss (email/phone/chat tools) - provide solutions - access invitations and receptions - create major trust - contracts;
Sales service:
Send confirmation design and foundation drawings to customers;
Provide customers with photos and videos of the production process;
Pre-assemble the main components of the machine and test them;
Draw color and logo according to customer's requirement;
Arrange customers to check the finished products;
Pre-order logistics locations to ensure on-time delivery.
Monitor the loading and packing machine in the container, such as the packing of wooden cases, steel wire reinforcement.
After-sales service:
Tracking ship and estimated date of arrival;
Send all necessary documents and assist to retrieve the goods smoothly;
Dispatch experienced engineers to installation and commission, training;
Regular learning of equipment operation;
Remote control is readily available;
Guarantee: 12 months;
Spare parts: sent by DHL/fedex/TNT.
