Zhengzhou Yishang Machinery Equipment Co., Ltd.

Simple dry mortar production line

Masonry mortar mixing machine skim coat equipment interior wall putty tile adhesive

 dry powder mixing plant







Product introduction

This is a dry powder mixing plant,can  produce masonry mortar,skim coating , interior wall putty ,tile adhesive and so on.

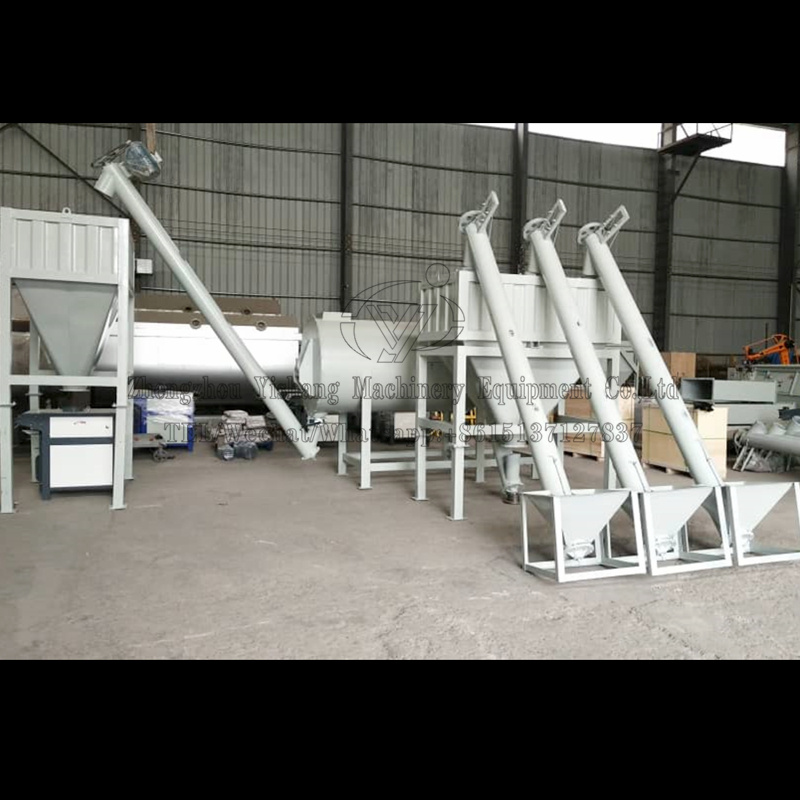

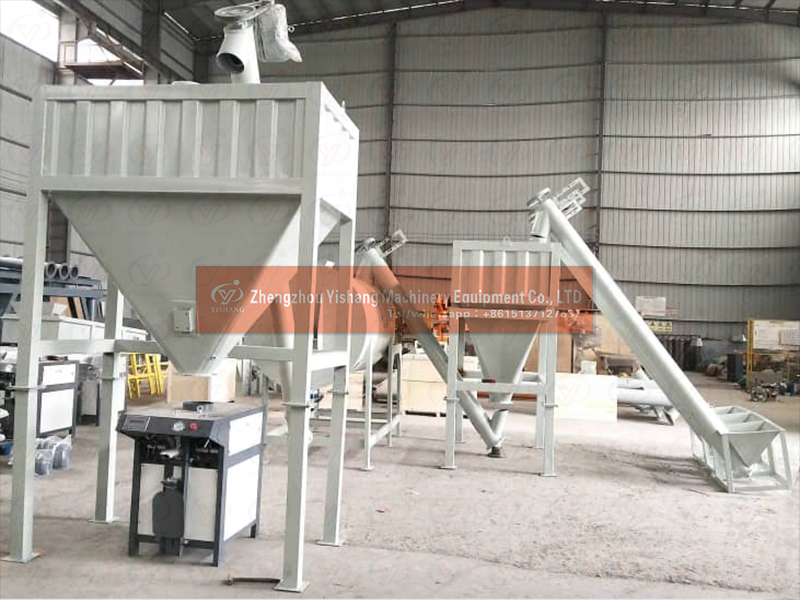

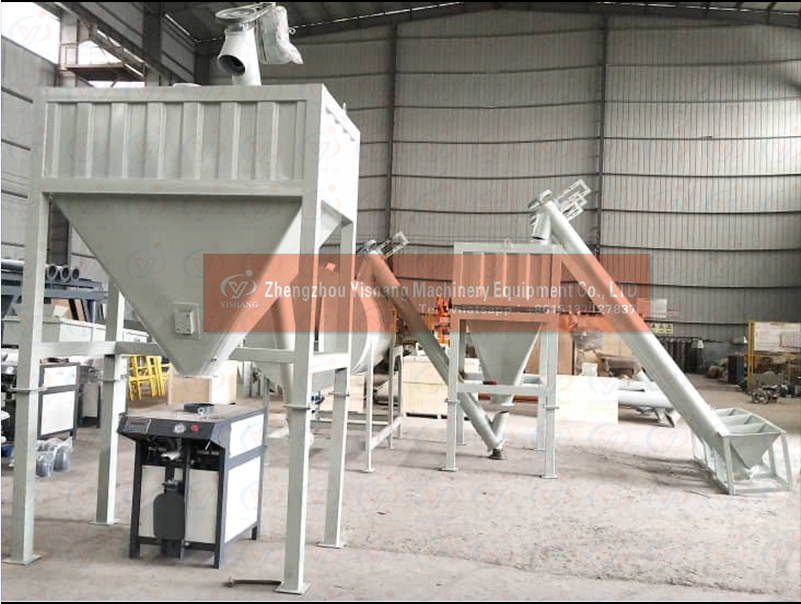

Plant equipment configuration list

  1. Feeding machine                          3set

  2. 2tons per batches mixer               1set

  3. weighing system                           1set

  4.second screw conveyor                 1set

  5. finished production silo                 1set

  6.valve mouth packing mcahine       2set


  Equipment advantage

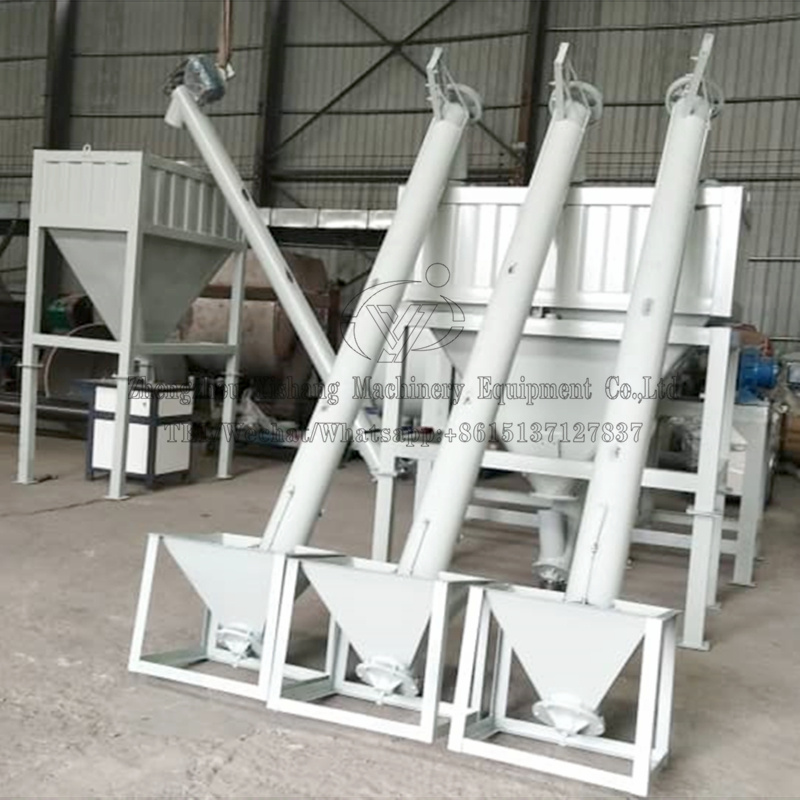

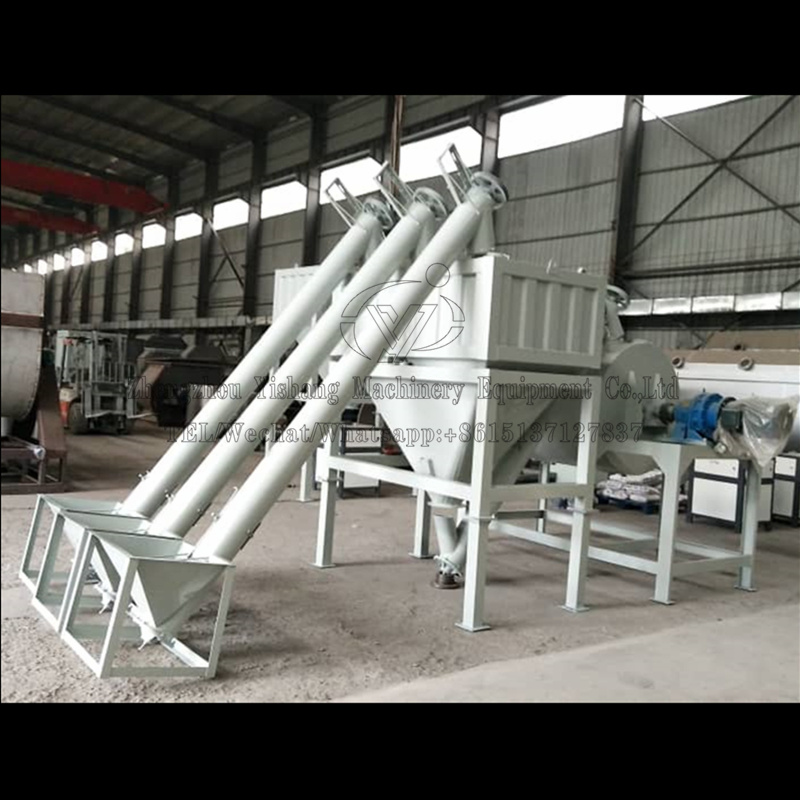

  1. three set raw materials feeding machine ensure feeding raw materials speed

  2.mixer is ribbon type mixer , it is very efficient. 5-8minuter can blend materisl evenly

  3. Under mixer have weighing system ,weighing system is using for raw materials dosing weighing

  4.secong screw conveyor and finished production silo is using for product storage

  5. packing machine is using for product pack, valve mouth bag is suitable for packing mcahine ,8seconds can      complete 25kg bag pack

  Entire plant need 2-3 worker ,and  can produce 5-6tons product  per hour ,Whole set plant weight  is 4 tons ,occupy space is L 6.8M width 2.9M  height is 3.2M


  Maintenance

  Replace gearbox oil annual  and fill grease in bearing per weak  , clean dust of motor and reducer and packing machine  , drain water of air compressor everyday

  we have sent some spare parts for free ,such as hose of pcaker / solenoid valve /bearing /impeller of packing machine


  Using

  open mixer  and open feeding machine , start to feed raw materials . blend 5-8 minuter ,open second screw conveyor and open discharged valve , materisl  go

  into silo ,start to pack


  Attention

  When mixer have materals ,mixer can not stop run ,Suppose electric power turn off suddenly , dont start mixer at once ,must unload materisl from mixer bottom gate ,and then

  open mixer



Related parameters of dry mixing mortar production line

ModelCapacityMixing timeTotal powerWorker required
YS-5001-2T/H15-20min/batch17.5kw2-3workers
YS-10002-4T/H15-20min/batch19.5kw2-3workers
YS-20005-6T/H15-20min/batch24kw2-3workers
YS-30006-8T/H15-20min/batch28kw2-3workers



Mortar application




1

Masonry mortar

4

Ceramic tile adhesive mortar

2

Floor mortar

5

Concrete masonry mortar

3

Tile group





Packaging & Shipping


1. Use the crane to load the equipment into the container

2. Equipment packaging plastic film, waterproof
3. Wood packaging for vulnerable equipment, which is prohibited from impact
4. Instructions for installing the instruction cabinet
