5-6tons per hour wall putty making machine dry mixed mortar production line plant

 Simple dry mortar production line ,the conveying system, storage hopper and valve port packing machine configuration based on main mixer. It realize the continuous feed, continuous mixing production line.

Working Principle:

Raw material is into ribbon mixer by feeding screw conveyor,after 5-8 minutes mixing by mixer ,The well-mixed materials will go into the storage bin via material conveying pipe, and the mixer may be feed consecutively and work continuously in flow line production,but the equipment is not over 4 meters high, thus solving the problem of  heightening the workshop. Moreover,it may realize automatic metering and filling,hence,it may not merely save the time and energies but also may be more accurate. Requiring little investment,but it may load ,weight and package the materials automatically; no wondering ,it is a simple but practical production line.

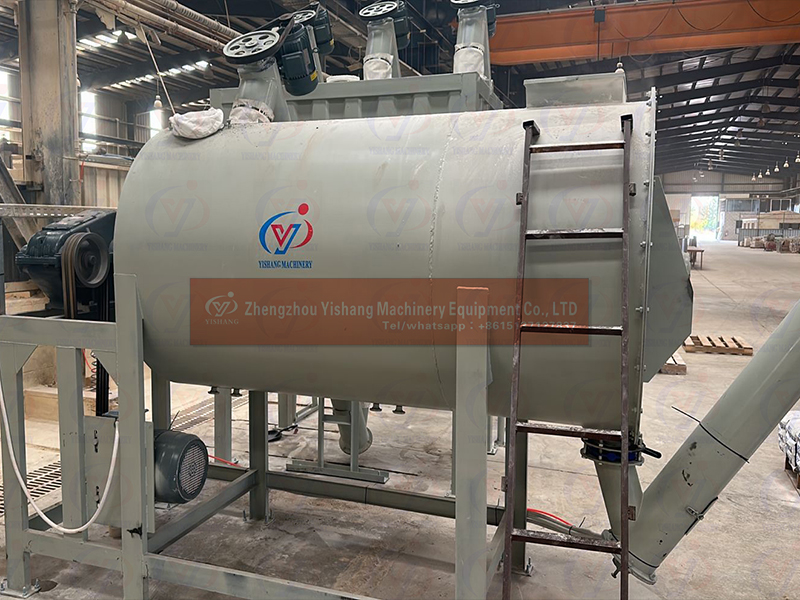

Features of mixer：

◆Horizontal cylinder structure, smooth operation, low noise, long service life, easy installation, wide range of use;

◆The inner and outer Three-tier screw belts ,displace and mix in the process of convection are used for stirring, no dead Angle, high mixing speed and high uniformity.

◆Equipped with feeding screw conveyor equipment, the feeding port is flush with the ground, and the feeding is convenient.

◆The horizontal  mixer is equipped  with an access door ,easy to clean.

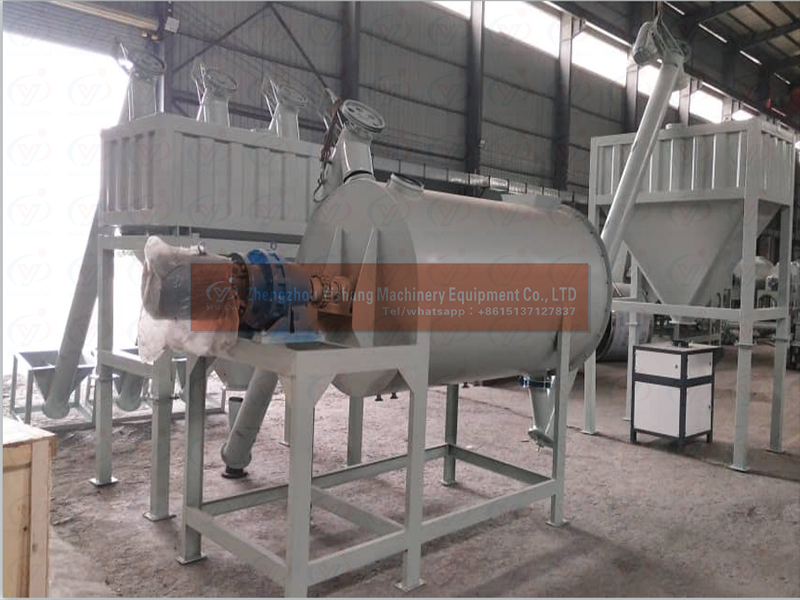

Installation schematic of dry mixing mortar production line

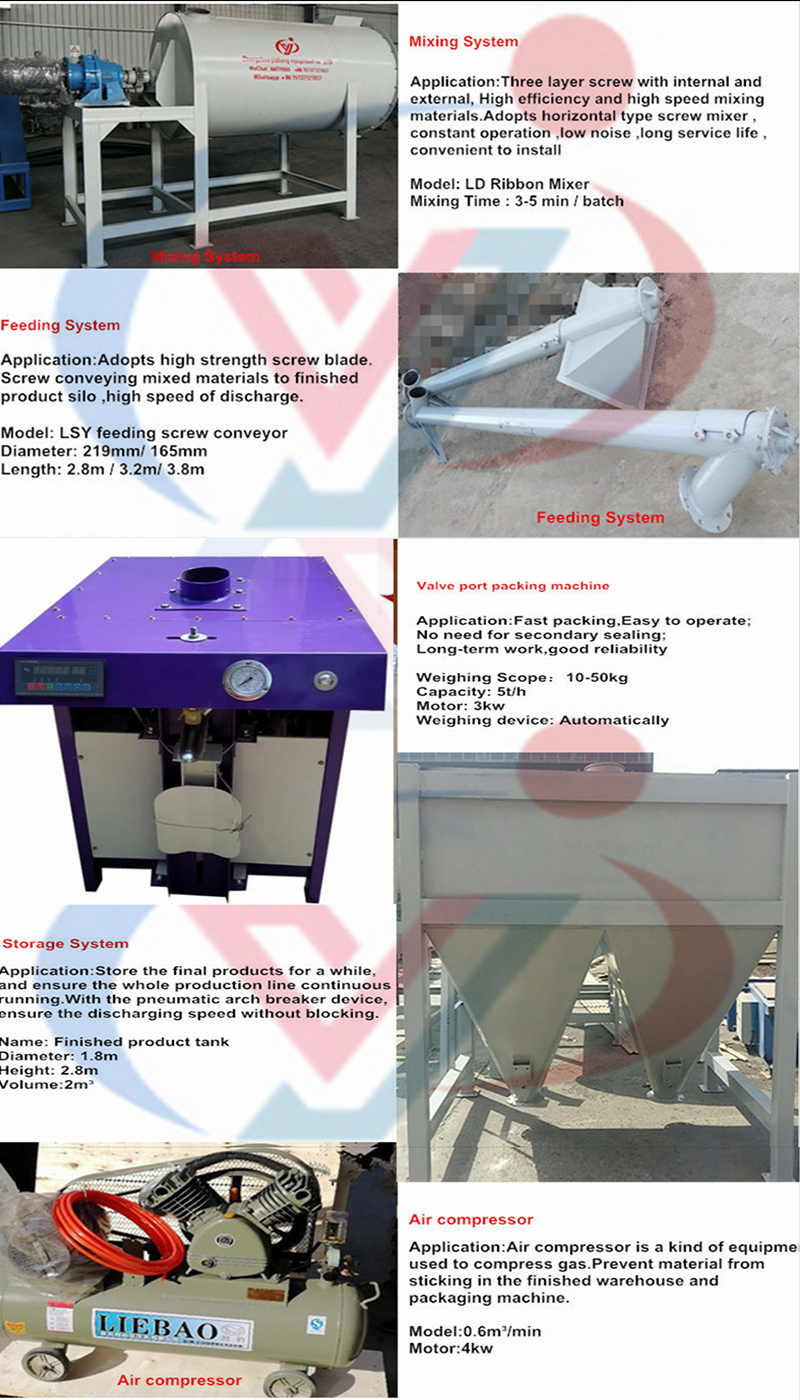

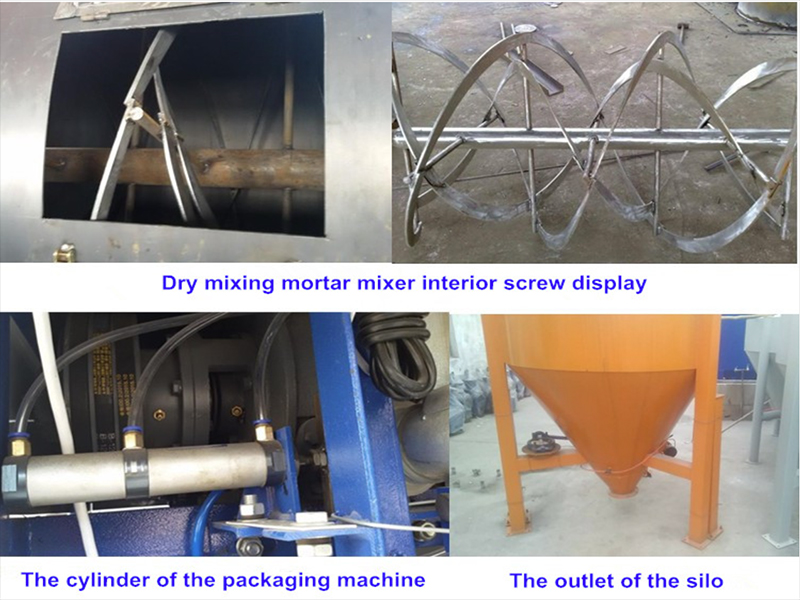

Equipment detail display

Related parameters of dry mixing mortar production line
