Fully Automatic Hot Melt Road Marking Paint Manufacturing Equipment with HMI Touchscreen and Recipe Storage
2026-05-24
The centralized HMI touchscreen is the command center of this Fully Automatic Thermoplastic Road Marking Paint Production Line. Operators can store unlimited white and yellow recipes, start/stop the entire line with one button, monitor production in real time, and receive automatic fault diagnostics — all from a single intuitive interface.
From raw material silos to finished bagged product, the entire process runs automatically. Only 2-4 operators are required per shift for supervision.
±0.5% weighing accuracy ensures consistent luminance factor (white ≥75, yellow ≥45) and skid resistance (≥50 BPN) batch after batch — critical for highway authority compliance.
The heavy-duty heating mixer reaches temperatures up to 220°C for proper resin melting and uniform dispersion of pigments, fillers, and glass beads.
The twin-auto packer delivers 30-40 bags per minute with ±0.2kg accuracy, eliminating packaging bottlenecks and maximizing production output.
Pulse jet dust collectors at all dust generation points ensure a clean working environment. The 100% solids, solvent-free formulation produces zero VOC emissions.
| Parameter | Value |
|---|---|
| Capacity range | 8-60 tons/hour |
| Annual output | 20,000-150,000+ tons |
| Weighing accuracy | ±0.5% |
| Packaging speed | 30-40 bags/minute |
| Packaging accuracy | ±0.2kg |
| Heating temperature | 150-220°C |
| Particle size | 0-4 mm |
| Operators required | 2-4 per shift |
| HMI touchscreen | Recipe storage, real-time monitoring |
| Standards compliance | BS EN 1436, AASHTO M249 |
| Model | Capacity (t/h) | Annual Output (tons) | Best For |
|---|---|---|---|
| YS-HM-FA-10 | 8-12 | 20,000-30,000 | Regional highway projects |
| YS-HM-FA-20 | 15-25 | 40,000-60,000 | National highway supplier |
| YS-HM-FA-30 | 25-35 | 60,000-85,000 | Export-oriented plant |
| YS-HM-FA-50 | 40-60 | 100,000-150,000 | Major production hub |
The global hot melt (thermoplastic) road marking paint market continues to expand, driven by:
Highway infrastructure investment worldwide
Airport expansion projects requiring durable markings
Higher safety standards demanding compliant materials
Night visibility requirements requiring glass bead retro-reflectivity
Environmental regulations favoring solvent-free thermoplastics
According to industry data, the thermoplastic road marking paint market is expected to grow at 5-7% annually through 2030, with the strongest demand in Southeast Asia, the Middle East, Africa, South America, and North America.
This Fully Automatic
Advanced production line delivers compliant white and yellow paint for global infrastructure projects

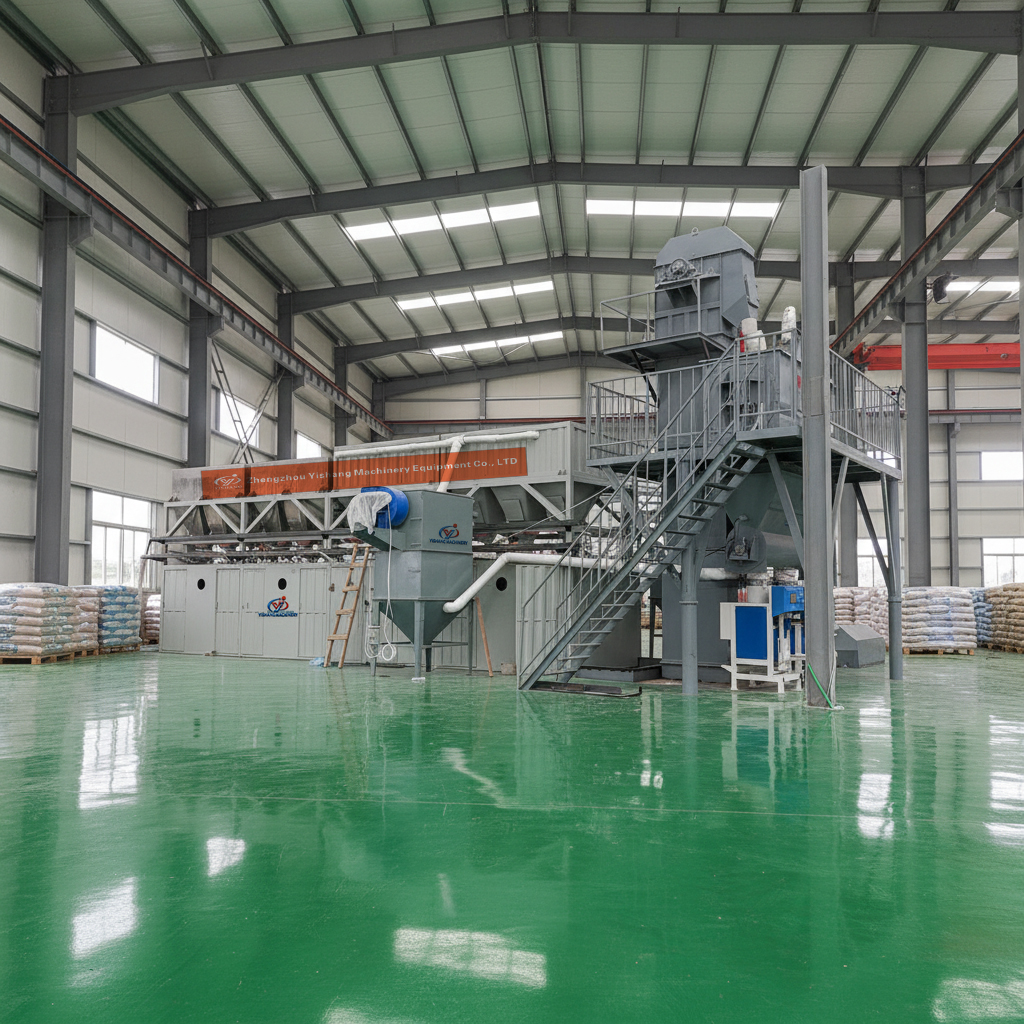

ZHENGZHOU, China – May 2026 – Zhengzhou Yishang Machinery Co., Ltd., a leading manufacturer of road marking paint production equipment, today announced the launch of its new Fully Automatic Hot Melt Road Marking Paint Manufacturing Equipment with HMI Touchscreen and Recipe Storage.
The new Fully Automatic Thermoplastic Road Marking Paint Production Line is specifically designed to produce white and yellow hot melt (thermoplastic) road marking paint that meets international highway standards including BS EN 1871, BS EN 1436, and AASHTO M249. With capacities ranging from 1 to 20 tons per hour, the line features an intuitive HMI touchscreen with recipe storage for one-button operation and quick color changeover.Hot melt road marking paint is the global standard for highway and urban road safety marking,Our new Hot Melt Road Marking Paint Manufacturing Equipment combines fully automatic PLC control with an easy-to-use HMI touchscreen and recipe storage system, allowing operators to switch between white and yellow formulations with a single touch — while maintaining BS EN 1436 compliance for luminance (white ≥75, yellow ≥45) and skid resistance (≥50 BPN)."
The centralized HMI touchscreen is the command center of this Fully Automatic Thermoplastic Road Marking Paint Production Line. Operators can store unlimited white and yellow recipes, start/stop the entire line with one button, monitor production in real time, and receive automatic fault diagnostics — all from a single intuitive interface.
From raw material silos to finished bagged product, the entire process runs automatically. Only 2-4 operators are required per shift for supervision.
±0.5% weighing accuracy ensures consistent luminance factor (white ≥75, yellow ≥45) and skid resistance (≥50 BPN) batch after batch — critical for highway authority compliance.
The heavy-duty heating mixer reaches temperatures up to 220°C for proper resin melting and uniform dispersion of pigments, fillers, and glass beads.
The twin-auto packer delivers 30-40 bags per minute with ±0.2kg accuracy, eliminating packaging bottlenecks and maximizing production output.
Pulse jet dust collectors at all dust generation points ensure a clean working environment. The 100% solids, solvent-free formulation produces zero VOC emissions.
| Parameter | Value |
|---|---|
| Capacity range | 8-60 tons/hour |
| Annual output | 20,000-150,000+ tons |
| Weighing accuracy | ±0.5% |
| Packaging speed | 30-40 bags/minute |
| Packaging accuracy | ±0.2kg |
| Heating temperature | 150-220°C |
| Particle size | 0-4 mm |
| Operators required | 2-4 per shift |
| HMI touchscreen | Recipe storage, real-time monitoring |
| Standards compliance | BS EN 1436, AASHTO M249 |
| Model | Capacity (t/h) | Annual Output (tons) | Best For |
|---|---|---|---|
| YS-HM-FA-10 | 8-12 | 20,000-30,000 | Regional highway projects |
| YS-HM-FA-20 | 15-25 | 40,000-60,000 | National highway supplier |
| YS-HM-FA-30 | 25-35 | 60,000-85,000 | Export-oriented plant |
| YS-HM-FA-50 | 40-60 | 100,000-150,000 | Major production hub |
The global hot melt (thermoplastic) road marking paint market continues to expand, driven by:
Highway infrastructure investment worldwide
Airport expansion projects requiring durable markings
Higher safety standards demanding compliant materials
Night visibility requirements requiring glass bead retro-reflectivity
Environmental regulations favoring solvent-free thermoplastics
According to industry data, the thermoplastic road marking paint market is expected to grow at 5-7% annually through 2030, with the strongest demand in Southeast Asia, the Middle East, Africa, South America, and North America.
This Fully AutomaticHot Melt Road Marking Paint Manufacturing Equipment is perfectly positioned to serve highway authorities, infrastructure contractors, and road safety material suppliers seeking certified, high-quality marking materials.
| Requirement | Standard | Yishang Line Capability |
|---|---|---|
| White luminance | ≥75 (BS EN 1436) | ±0.5% TiO₂ dosing |
| Yellow luminance | ≥45 (BS EN 1436) | ±0.5% chrome yellow dosing |
| Skid resistance | ≥50 BPN | Anti-slip aggregate dosing |
| Softening point | 90-125°C | Precision heating control |
| Drying time | ≤3 minutes | Consistent formulation |
| Glass bead content | 18-30% | Accurate bead dosing |
| Feature | Description |
|---|---|
| Recipe storage | Store unlimited white/yellow formulations |
| One-button start/stop | Complete automation from silo to packer |
| Real-time monitoring | Live display of temperature, weight, speed |
| Fault diagnostics | Instant alerts with troubleshooting guidance |
| Data logging | Complete production records for quality certification |
| Remote access | Smart factory integration (optional) |
| Multi-language support | Available upon request |
Zhengzhou Yishang Machinery provides comprehensive services for every Hot Melt Road Marking Paint Manufacturing Equipment:
✅ Free plant layout design – Based on customer's workshop dimensions
✅ Equipment manufacturing – Factory testing before shipment
✅ Installation supervision – Yishang engineers on-site
✅ Operator training – HMI touchscreen and PLC operation
✅ Basic formulations – BS EN 1436 compliant white & yellow recipes
✅ Spare parts supply – Original parts with fast shipping
✅ Remote technical support – Lifetime via WhatsApp/WeChat/email
✅ 1-year warranty – Core components covered
Zhengzhou Yishang Machinery Co., Ltd. is a specialized manufacturer of Hot Melt Road Marking Paint Manufacturing Equipment, Fully Automatic Thermoplastic Road Marking Paint Production Lines, Dry Mortar Mixing Plants, Self-leveling Mortar Production Lines, and Tile Adhesive & Grout Production Lines.
Headquartered in Zhengzhou, Henan Province — China's industrial equipment manufacturing hub — the company serves customers across Southeast Asia, Africa, South America, the Middle East, Europe, and North America.
Recent Yishang installations include:
Hot melt paint manufacturing equipment – Saudi Arabia (2025)
Fully automatic thermoplastic paint line – Malaysia (2026)
HMI touchscreen paint plant – Philippines (2025)
