Wall Putty Making Machine: Key Equipment for Efficient Production

2025-07-07

Wall Putty Making Machine: Key Equipment for Efficient Production

Introduction

Wall putty is a crucial construction material used for smoothing and preparing surfaces before painting. To produce high-quality wall putty efficiently, selecting the right machinery is essential. The key components of a wall putty production line include mixers (single-ribbon mixers or twin-shaft paddle mixers), packaging machines (preferably rotary valve packers), and lifting equipment (screw elevators or bucket elevators). This article explores the best choices for each machine to optimize production efficiency, accuracy, and output.

1. Choosing the Right Mixer for Wall Putty Production

The mixer is the heart of the wall putty manufacturing process. Two main types are commonly used:

A. Single-Ribbon Mixer

  • Suitable for small to medium-scale production.

  • Ensures gentle and uniform blending of dry powders.

  • Simple structure, easy maintenance, and cost-effective.

B. Twin-Shaft Paddle Mixer (Non-Gravity Mixer)

  • Ideal for large-scale production with higher efficiency.

  • Provides intense mixing action, reducing blending time.

  • Ensures better homogeneity and consistency in the final product.

Recommendation: For large-volume wall putty production, the twin-shaft paddle mixer is the best choice due to its faster mixing speed and superior consistency.

2. Packaging Machine Selection: Why impleller Valve Packing Machine is Best for Wall Putty

Packaging plays a vital role in maintaining product quality and ensuring smooth logistics. The rotary valve packing machine (also called a wheel valve packer) is the most suitable choice for wall putty due to:

  • High Efficiency: Each rotary valve packer can handle 5–8 tons per hour, making it ideal for fast production lines.

  • Precision Weighing: Ensures accurate filling (±0.2%–0.5% error), reducing material waste.

  • Dust-Free Operation: Minimizes powder spillage, improving workplace cleanliness.

  • Automation Compatibility: Can be integrated with automated systems for seamless production.

How Many Packing Machines Are Needed?

  • For small-scale production (5–10 tons/hour), one rotary valve packer is sufficient.

  • For medium to large-scale production (10–30 tons/hour), 2–4 packers should be installed to maximize output.

3. Lifting Equipment: Screw Elevator vs. Bucket Elevator

Efficient material handling is crucial for smooth production. Two common lifting systems are:

A. Screw Elevator (Auger Conveyor)

  • Suitable for small-scale production with limited space.

  • Lower initial cost but slower compared to bucket elevators.

  • Requires more maintenance due to wear and tear.

B. Bucket Elevator

  • Ideal for large-scale wall putty production.

  • Higher lifting capacity (up to 50–100 tons/hour).

  • Low maintenance, easy operation, and long service life.

  • Reduces downtime, improving overall efficiency.

Recommendation: For high-volume production, a bucket elevator is the best choice due to its durability and efficiency.

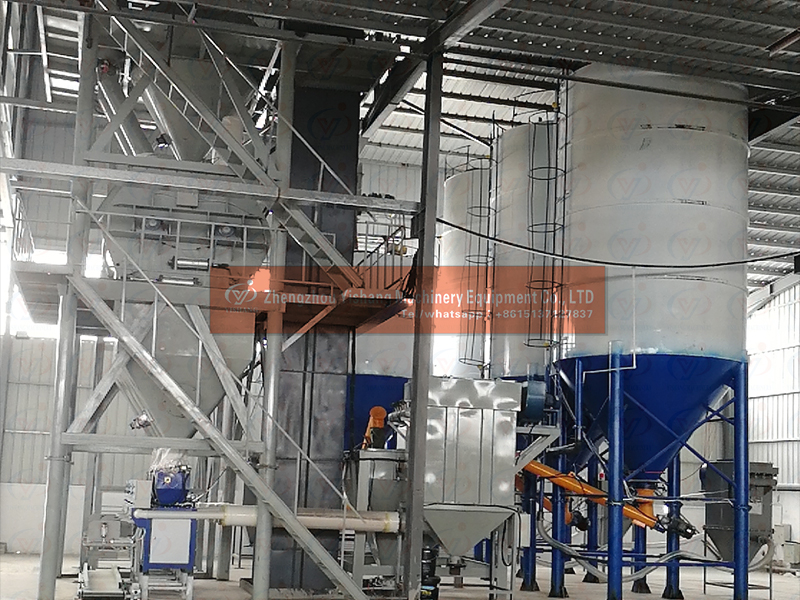

4 (3).jpg

Conclusion

To maximize wall putty production efficiency, manufacturers should invest in:
✔ Twin-shaft paddle mixer for fast, uniform mixing.
✔ impeller valve packing machines (multiple units if needed) for high-speed, precise packaging.
✔ Bucket elevators for large-scale material handling.

By selecting the right equipment, businesses can enhance productivity, reduce operational costs, and ensure consistent product quality.
