Simple troubleshooting and maintenance of dry mortar packing machine

2023-04-12

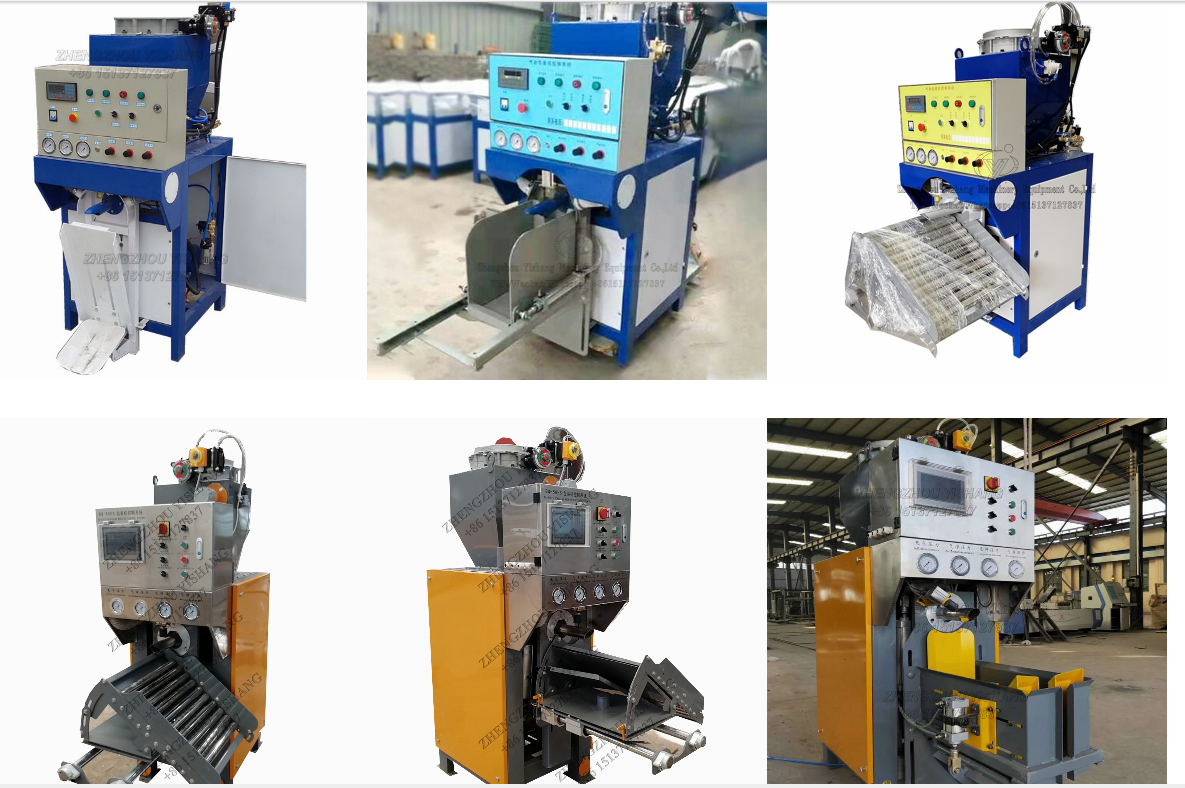

Simple troubleshooting and maintenance of dry mortar packing machine

dry mortar filling machine


1. Whether the watch head has power: if no power does not show the watch head out to check whether all the wiring is loose. Press the ON button of circuit breaker protector in electric control cabinet (circuit breaker will trip automatically if the motor is overloaded with too much current). Check whether the cable connected to the emergency stop button is loose
2. Whether the motor is turning positive: the impeller is to the direction of the discharge port.
3 Check the air pressure: the minimum to ensure that more than 4 pressure, less than 4 pressure should be adjusted to more than 4 pressure, first, air pump pressure is enough (more than 8) there is no frequent waterproof (4 hours to put water) whether the trachea branch too much, gas supply. Second, there is a knob on the oil and water separator to adjust the size of the air pressure, pull it up clockwise to adjust the atmospheric pressure, counterclockwise to reduce the pressure.
4. Discharge port: discharge port material too much, crushed to death, material can not come out
5. Through the power head two blowups: one in front of the small silicone tube, the other behind the power head in the direction of the motor. Unscrew the blow hole. The air hole is blocked and the material cannot blow out.
6. Whether there is material at the upper feed port: the material cannot be lowered from the finished product bin to the packing machine
7. Open the power head to see if there is too much material to crush the power head
8. See if the air mouth is blocked, the air out of the incoming material will not go in (suitable for glass beads and other light materials)

Please strictly follow this instruction manual when using the dry mortar packing machine.
