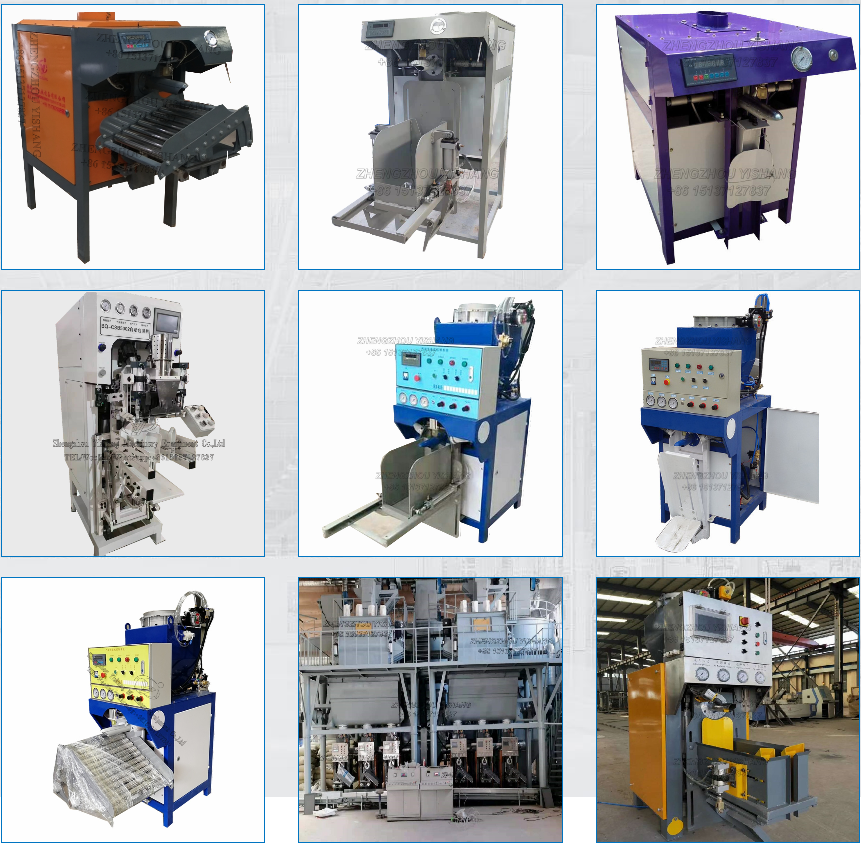

Gypsum packing machine/ valve bag filler /valve bag bagger/valve bag packing machine

Our company specializes in the production of various valve bag packaging machine. Impeller type valve bag packing machine, air flow valve bag packing machine, air floating valve bag packing machine, ultrasonic heat sealing valve bag packing machine. Can pack 10-50KG weight material.

Suitable packing materials:
Valve bag packing machine
Specially used for packing powder materials such as dry powder mortar, cement and putty powder. Applicable bag for valve bag.

Discharge time of packaging machine:
Valve port packing machine: 20-25 kg bags need 4 seconds, 50 kg bags 8 seconds, generally an hour 7-8tons.

 Installation of packaging machine
The valve port packing machine has two types of distribution bag and discharge port. The method of connecting the cloth bag is to put the packaging machine under the mixer and take the cloth bag out. Then the cloth bag and the discharge port of the mixer are fixed with a hoop. There is a black button on the top of the air pressure oil and water separator. First pull out the button and then twist it to adjust the air pressure (this is to adjust the total air pressure). This is to adjust the total air pressure, which is generally adjusted before leaving the factory. The air pressure valve in the control cabinet only regulates the air pressure blown up. Generally, one valve port packing machine is equipped with 0.6 cubic meters of air compressor, and two with 0.9 cubic meters of air compressor.

Maintenance of packaging machine
Valve port packing machine:
After the bag reaches the weight, it must be pulled out as soon as possible, otherwise the packaging material will be inaccurate after a long time. The machine must be blown up with an air gun when it is finished. There are two butter nozzles inside the power head, which need to be buttered once every other month. The power head adopts three-layer seal, and the bearing is 308 bearing. If the sealing is not often refueling, the wear will be fast, and the machine will leak powder.
