Thermoplastic road marking paint production line

Industrial-Scale Manufacturing Solution for Premium White & Yellow Thermoplast Road Marking Paint

Road safety infrastructure requires consistent, high-quality thermoplastic road marking paint that delivers durability, reflectivity, and skid resistance. As global highway networks, urban roads, airports, and parking facilities expand, the demand for high-capacity, fully automated thermoplastic paint production equipment continues to grow substantially.

Zhengzhou Yishang Machinery introduces its High Capacity Fully Automatic Thermoplastic Road Marking Paint Plant Production Line with a capacity of 12-15 tons per hour — a complete Fully Automatic Thermoplastic Road Marking Paint Production Line specifically engineered for manufacturing premium white and yellow thermoplastic road marking materials at industrial scale. This fully automated production line integrates intelligent raw material handling, precision batching, high-speed heating mixing, cooling, crushing, sieving, automatic packaging, and dust collection into a seamless manufacturing system.

With a consistent output of 12-15 tons per hour (approximately 30,000-40,000 tons per year), our Thermoplastic Road Marking Paint Mixing Plant enables manufacturers to produce consistent, high-quality road marking materials that meet international standards including BS EN 1871, BS EN 1436, AASHTO M249, and ASTM D476. The equipment is built for durability with wear-resistant components designed for 24/7 industrial operation.

Why Choose This Fully Automatic Thermoplastic Road Marking Paint Production Line?

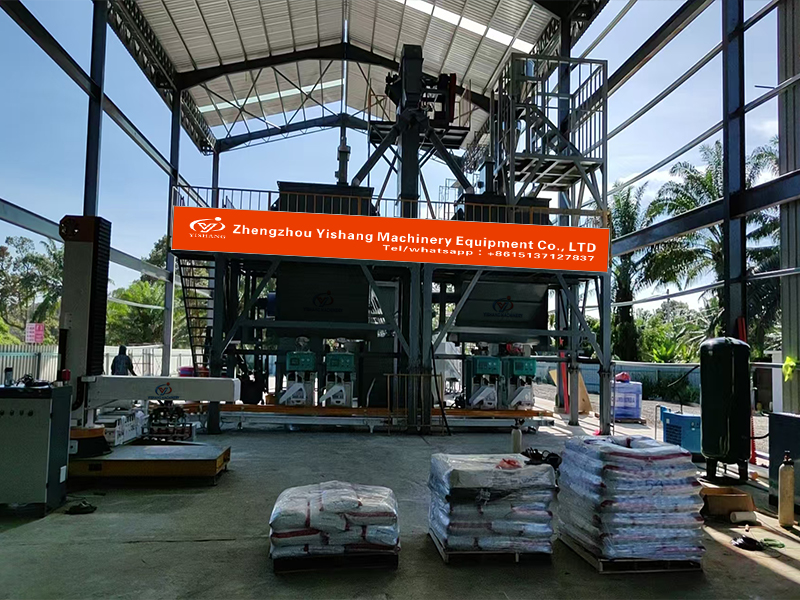

Fully Automatic Thermoplastic Road Marking Paint Mixing Plant.jpg

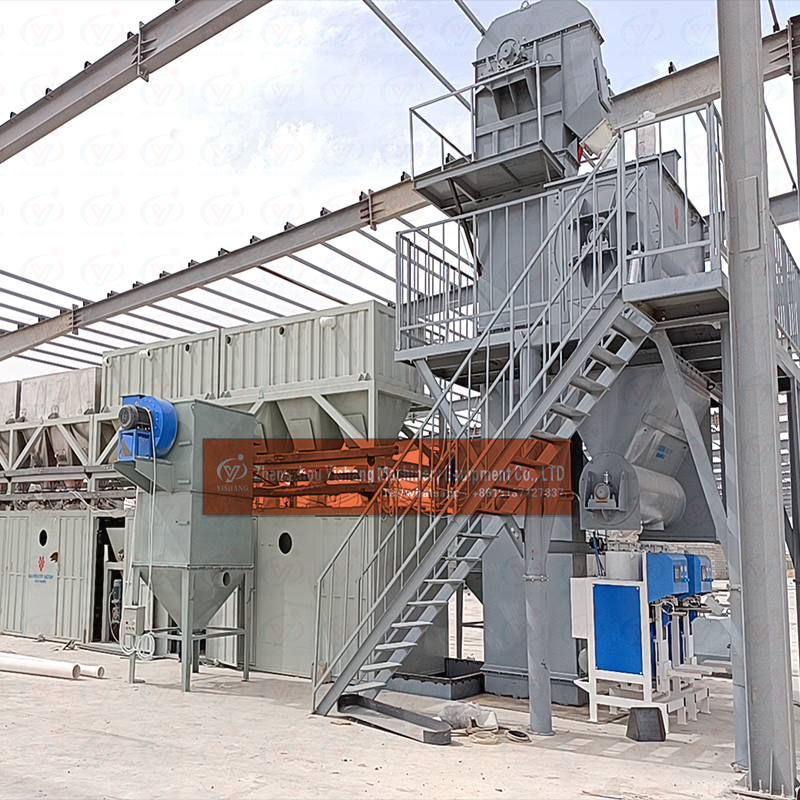

Fully Automatic Thermoplastic Road Marking Paint Production Line.jpg

1. High Capacity – 12-15 Tons Per Hour

This Fully Automatic Thermoplastic Road Marking Paint Production Line is specifically designed for manufacturers requiring high-volume output:

Parameter	Value
Hourly capacity	12-15 tons
Annual output	30,000-40,000 tons (based on 8,000 hours/year)
Batch size	1,500-2,000 kg
Production cycle	8-10 minutes per batch

2. Designed for White & Yellow Paint Production

The Thermoplastic Road Marking Paint Mixing Plant is specifically configured to produce both standard colors with precise formulations:

Product	Key Pigment	Primary Applications
White Thermoplastic Paint	Titanium Dioxide (TiO₂)	Lane dividers, edge lines, crosswalks, symbols, stop lines
Yellow Thermoplastic Paint	Chrome Yellow / Iron Yellow	No-passing zones, caution areas, bus lanes, curbs, parking restrictions

Both colors meet international standards including BS EN 1871, BS EN 1436, AASHTO M249, and ASTM D476.

3. Complete Fully Automatic Production Workflow

Step 1: Raw Material Storage & Handling

6-8 silos for resin, pigment (TiO₂ / chrome yellow), filler, glass beads
Automatic feeding systems with level sensors and dust collection

Step 2: Automatic Weighing & Batching

PLC-controlled weighing system with ±0.5% accuracy
Micro-dosing for pigments and additives
Recipe storage for multiple formulations (white/yellow)

Step 3: High-Speed Heating Mixing

Heavy-duty high-speed heating mixer
Temperature control up to 220°C for resin melting
Uniform dispersion of pigments, fillers, and glass beads

Step 4: Cooling & Solidification

Water-cooled conveyor belt with multiple cooling fans
Rapid temperature reduction for solid sheet formation

Step 5: Crushing & Pulverizing

Coarse crusher for initial size reduction
Fine pulverizer for powder processing (0-4mm particle size)

Step 6: Sieving & Classification

Vibrating sieve system for particle size control

Step 7: Automatic Packaging

Twin-auto valve bag packer (30-40 bags/minute)
25kg/bag standard, ±0.2kg accuracy

Step 8: Dust Collection System

Pulse jet dust collectors at all dust points
Environmental compliance with material recovery

4. Advanced PLC & HMI Control System

The Fully Automatic Thermoplastic Road Marking Paint Production Line is equipped with a centralized PLC and HMI touchscreen system:

One-button start/stop – Entire process operates automatically
Multi-recipe storage – Quick changeover between white and yellow
Real-time production monitoring – Live data display
Automatic fault diagnostics – Instant alerts
Data logging – Complete production records
Remote access capability – Smart factory integration

5. High Output & Efficiency

Parameter	Value
Production capacity	12-15 tons/hour
Annual output	30,000-40,000 tons
Workers required	Only 3-4 operators per shift
Power consumption	Optimized for energy efficiency

6. Environmental Protection

Fully enclosed production – From raw material intake to finished packaging
Pulse jet dust collectors – Captures particulate matter
Fume extraction – Removes volatiles from heating process
Low emissions – Meets international standards

Technical Specifications

Parameter	Specification
Hourly capacity	12-15 tons
Annual output	30,000-40,000 tons
Batch size	1,500-2,000 kg
Production cycle	8-10 minutes per batch
Mixer power	75-90 kW
Total power	260-340 kW
Workshop area	600-900 m²
Operators	3-4 per shift
Particle size	0-4 mm (adjustable)
Heating temperature	150-220°C
Weighing accuracy	±0.5%
Packaging accuracy	±0.2kg
Packaging speed	30-40 bags/minute
Shipping volume	4-5 × 40HQ containers

Main Components of the Thermoplastic Road Marking Paint Mixing Plant

Component	Description
Raw material silos	6-8 units for resin, TiO₂, yellow pigment, CaCO₃, glass beads; level sensors
Automatic weighing system	PLC-controlled with ±0.5% accuracy
Screw conveyor & bucket elevator	Dust-free material conveying
High-speed heating mixer	Heavy-duty design, 150-220°C, wear-resistant lining
Cooling conveyor	Water-cooled belt with multiple cooling fans
Coarse crusher	First-stage size reduction
Fine pulverizer	Second-stage grinding to 0-4mm
Vibrating sieve	Particle size classification
Twin-auto valve bag packer	2 heads; 30-40 bags/min; ±0.2kg
Pulse dust collector	Multi-filter with material recovery
PLC control panel	HMI touchscreen; remote access
Air compressor	For pneumatic system

Raw Materials Processed

Material	Function	Typical Proportion
C5/C9 Petroleum Resin	Binder, adhesion	15-25%
EVA	Flexibility	3-8%
Paraffin Wax / PE Wax	Flowability	2-5%
Titanium Dioxide	White pigment	8-12%
Chrome Yellow	Yellow pigment	5-10%
Calcium Carbonate	Filler	40-55%
Glass Beads (coated)	Retro-reflectivity	18-30%
Anti-slip aggregate	Skid resistance	3-8%
UV stabilizer	Prevents fading	0.5-1%

End Product Specifications (BS EN 1436 Compliant)

Parameter	White Paint	Yellow Paint
Luminance factor (β)	≥75	≥45
Softening point	90-125°C	90-125°C
Drying time	≤3 minutes	≤3 minutes
Glass bead content	18-30%	18-25%
Compressive strength	≥12 MPa	≥12 MPa
Skid resistance (BPN)	≥50	≥50

Key Features Summary

Feature	Benefit
12-15 tons/hour capacity	High-volume production for large projects
PLC fully automatic control	One-button operation; 3-4 operators only
±0.5% weighing accuracy	Consistent product quality
Twin-auto packer (30-40 bags/min)	High-speed packaging; no bottleneck
Two-stage size reduction	Precise 0-4mm particle control
Dual-color capability	Quick changeover white ↔ yellow
Pulse dust collection	Clean, environmentally compliant
CE/ISO certification	Available upon request

Applications

End Product	Application Areas
White Thermoplastic Paint	Highways, urban roads, crosswalks, stop lines, airports, parking lots
Yellow Thermoplastic Paint	No-passing zones, bus lanes, caution areas, curbs

Why Zhengzhou Yishang Machinery?

High Capacity Focus – 12-15 tons/hour specifically designed for industrial-scale production
Fully Automatic – Advanced PLC control with remote access
Turnkey Solutions – Complete plant design, supply, installation, training
Formula Support – Basic white and yellow paint formulations provided
Global Export Experience – CE-certified equipment worldwide
Factory Direct – Competitive pricing
After-Sales Service – Engineers available overseas
One-Year Warranty – Core components covered

📞 Tel/WhatsApp/WeChat: +86 15137127837
🌐 Web: www.drymortarmachinery.com
✉ Email: [email protected]

Please inform us of your target capacity and color requirements (white, yellow, or both). Our engineering team will design the optimal Fully Automatic Thermoplastic Road Marking Paint Production Line for your specific needs.
