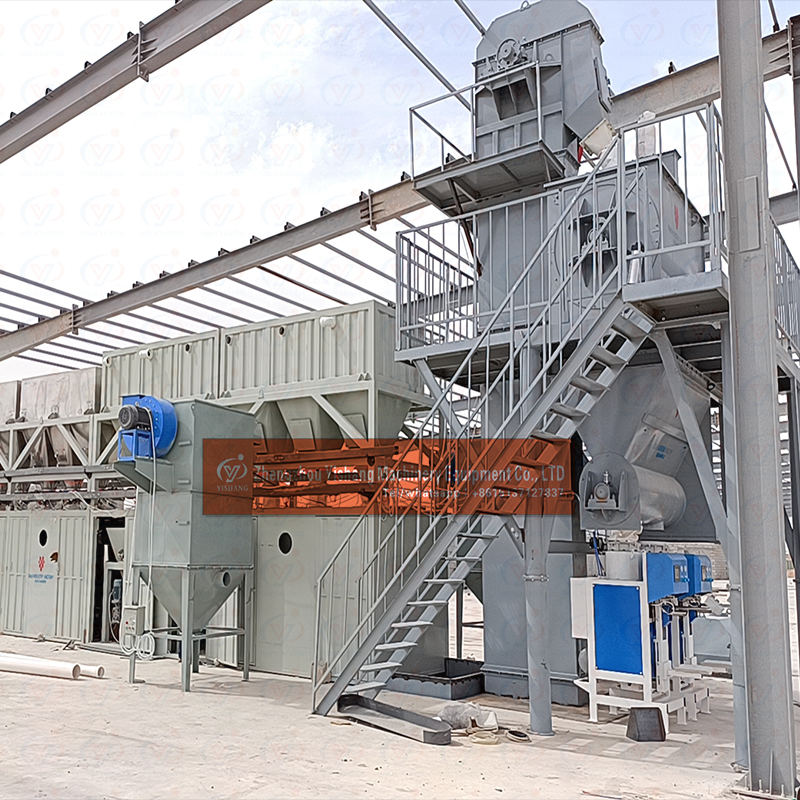

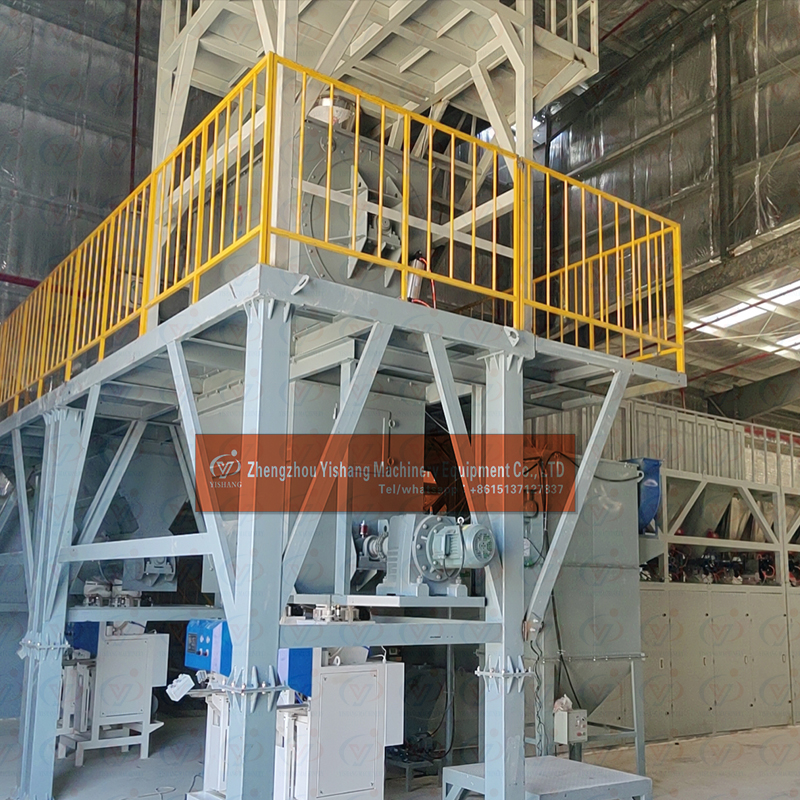

Thermoplastic road marking paint production line
Automatic thermoplastic road marking paint mixing machine plant production line
The automatic thermoplastic road marking paint production line adds oil circuit on the basis of the traditional mixing equipment process, and can automatically spray oil, and the screw belt used in the road marking coating mixer is a thick screw belt, equipped with strong power.All raw materials can be weighed automatically.
The working principle of automatic thermoplastic road marking paint equipment:
Thermoplastic road marking coating production line to quickly mix materials, under the spiral belt movement of the stirring shaft, so that the inner and outer spiral belt in a large range of material, the inner spiral belt will move the material to both sides, the outer spiral belt will move the material from both sides to the inside, so that the material mixing back and forth, the other part of the material is driven by the spiral belt, along the axial radial movement, thus forming a convective cycle. Due to the agitation of the above movement, the material is quickly and evenly mixed in a short time.
Scope of application of automatic thermoplastic road marking paint equipment:
Normal temperature solvent-based road marking coating, heated solvent-based road marking coating, hot melt reflective road marking coating, protrudate vibration reflective road marking coating, hot melt anti-slip road marking coating, preformed marking tape coating, (polyurethane acrylic acid) color anti-slip marking coating, (epoxy resin) color anti-slip marking coating, polyurea elastic anti-slip marking coating, Polyurethane two-component anti-fouling marking coatings, rain night reflective ceramic beads, hot melt rain night reflective marking coatings
This machine contains quantitative filling system, features are as follows:
1. Unique and scientific weighing data collection mechanism makes the dynamic weight data collected more timely and the weighing results more reliable.
2, the weight value of the weighing can be set at will;
3, filling error is small, and the accuracy is adjustable, filling speed: 5-10 seconds, quantitative control mode: through the weighing sensor dynamic acquisition, processing of weighing dynamic data: through the frequency converter to take double speed (high speed and low speed) filling mode. And the filling speed of the high-speed section and the low-speed section can be freely adjusted. By adjusting the parameters of the frequency converter, the filling speed can be adjusted. The filling speed can be adjusted by adjusting the knob. By adjusting the high speed value and low speed value of filling, it can meet the requirements of different precision, packaging and filling speed of filling.
4, error manual correction function, the operator can easily correct the error as long as the key is clicked.
5, fast, slow double filling head can ensure the filling speed and accuracy at the same time, with large and small two filling mouths, of which the large filling mouth for fast filling, small filling mouth for slow filling.
Company Information:
Zhengzhou Yishang Machinery Equipment co., LTD. located at xingyang machinery industrial park, zhengzhou city, is a group company integrating r&d, manufacturing and sales. The company specializes in the production of thermoplastic road marking paint equipment and packing equipment. The company's products are exported to more than 10 countries and regions in the Middle East, Southeast Asia and Africa.
Relying on the exquisite technology, advanced craft, reasonable design, we can practical and tailored process efficiently for customer, according to the actual situation of each client (the scale of investment, building conditions, material type, material flow, product formula).
Company uphold:
Rigorous truth-seeking, seek common development, sharing success and create brilliance
