Screw conveyer

LSY165 /219 /273 concrete batching plant conveying screw

Product Description

Equipment introduction:

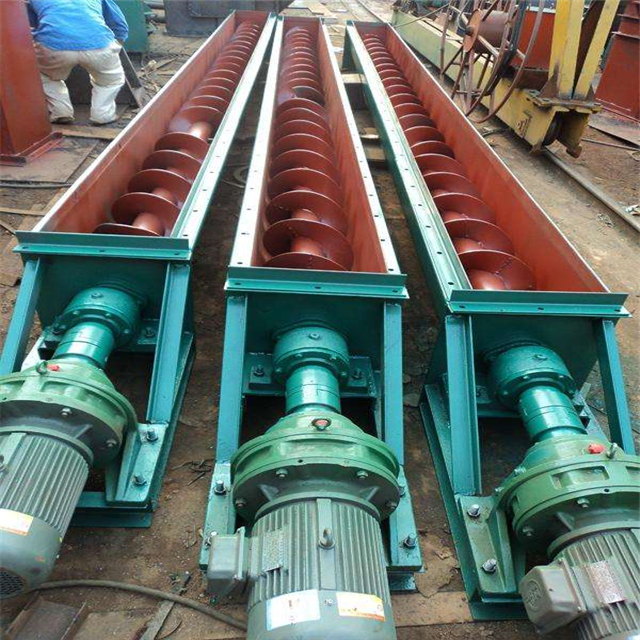

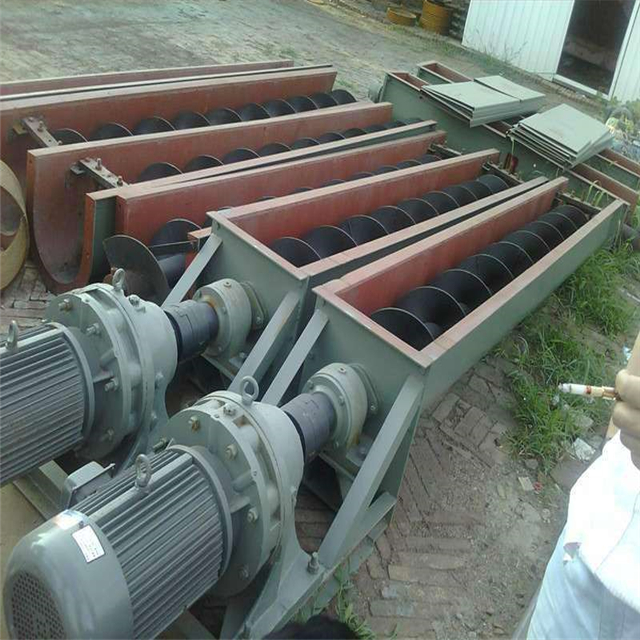

Cement screw conveyor is an new transportation equipment with power device,gear box,coupling,screw axis and hanging bearing.the screw axis is made of several sections which connected with spline.

This product is widely used in mining, metallurgy, coal, glass, building materials, light industry, chemical industry, water power, food, abrasive, abrasive tools, etc, and make various industries in environmental protection got very big improvement, and reduce the energy consumption and transportation management cost , make economic benefits have been improved greatly

Working principle:

Model	Delivery angel to the ground	Delivery distance (m)	Max. Delivery capacity(T/H)	Pipe diameter(mm)	Motor power(kw)
LSY168	0-45°	4-15m	7T/H	168mm	4-7.5kw
LSY219	0-45°	4-15m	15T/H	219mm	5.5-15kw
LSY273	0-45°	4-15m	30T/H	273mm	7.5-18.5kw
LSY323	0-45°	4-15m	60T/H	323mm	15-30kw

Basic Configuration

Application

Packaging & Shipping

(1)FCL: export equipment standard container

(2) wooden box: The size of the packing box shall be designed according to the equipment

The widget is attached to the machine

Soft wood is placed in front or back of the machine to protect it.

The plastic film is covered in this machine for waterproofing

The equipment into the container with the crane

company service

Pre-sales service:
Design - discuss (email/phone/chat tools) - provide solutions - access invitations and receptions - create major trust - contracts;
Sales service:
Send confirmation design and foundation drawings to customers;
Provide customers with photos and videos of the production process;
Pre-assemble the main components of the machine and test them;
Draw color and logo according to customer's requirement;
Arrange customers to check the finished products;
Pre-order logistics locations to ensure on-time delivery.
Monitor the loading and packing machine in the container, such as the packing of wooden cases, steel wire reinforcement.
After-sales service:
Tracking ship and estimated date of arrival;
Send all necessary documents and assist to retrieve the goods smoothly;
Dispatch experienced engineers to installation and commission, training;
Regular learning of equipment operation;
Remote control is readily available;
Guarantee: 12 months;
Spare parts: sent by DHL/fedex/TNT.
