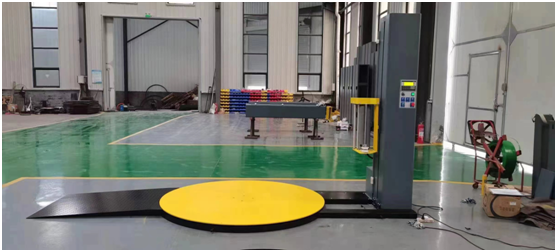

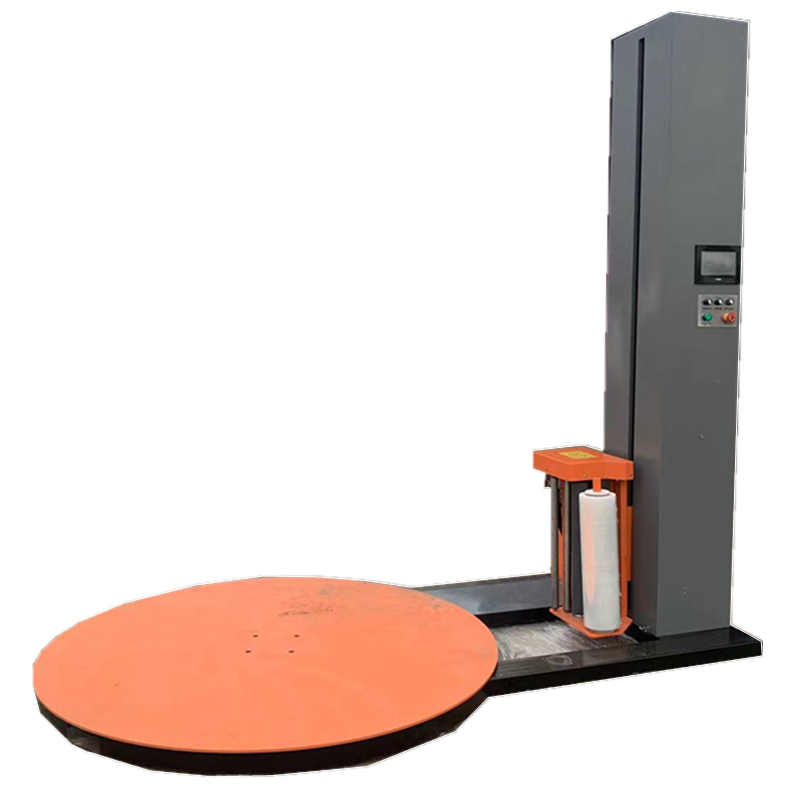

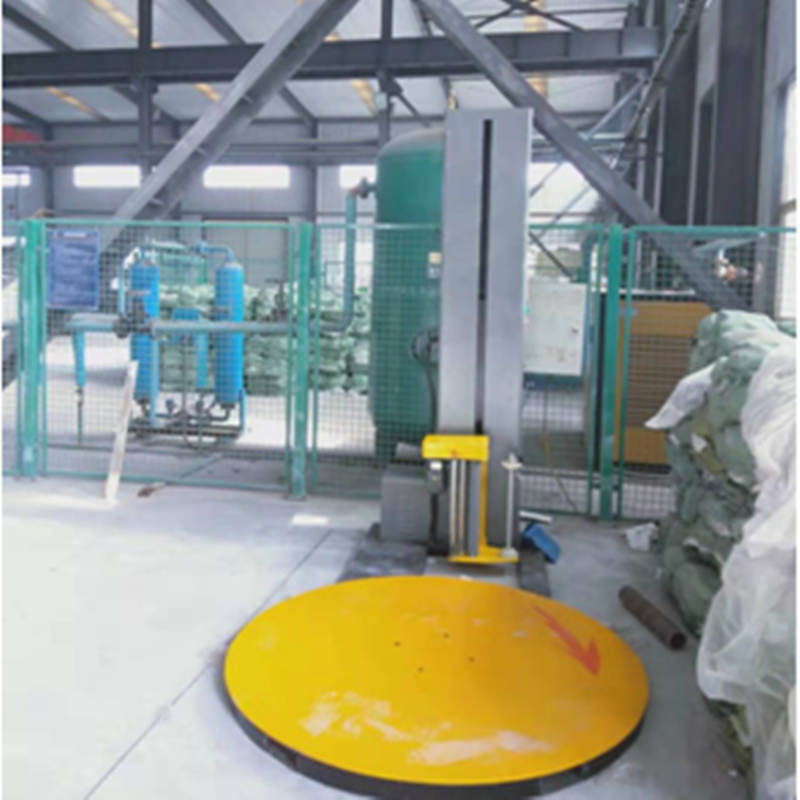

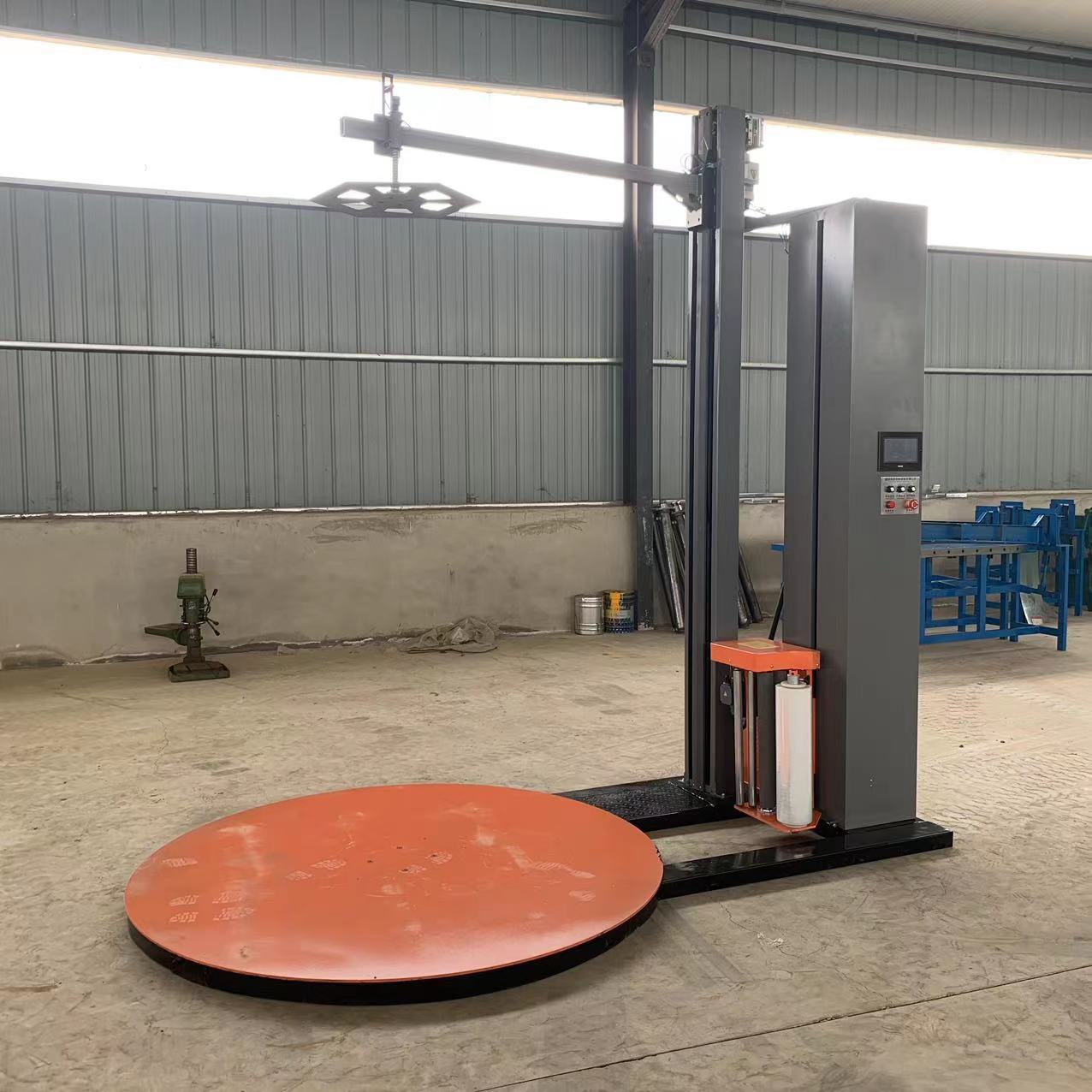

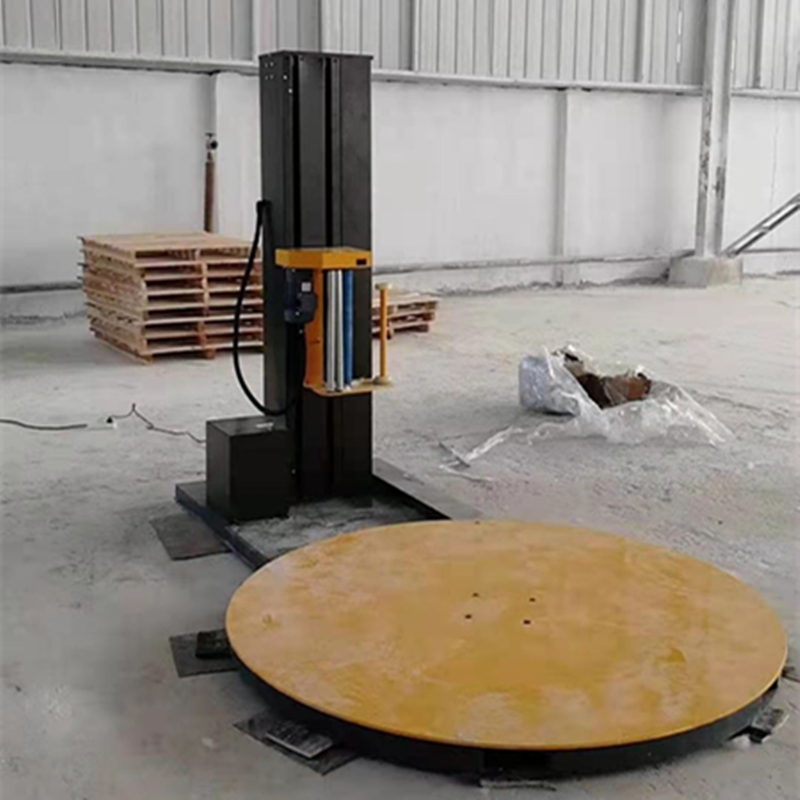

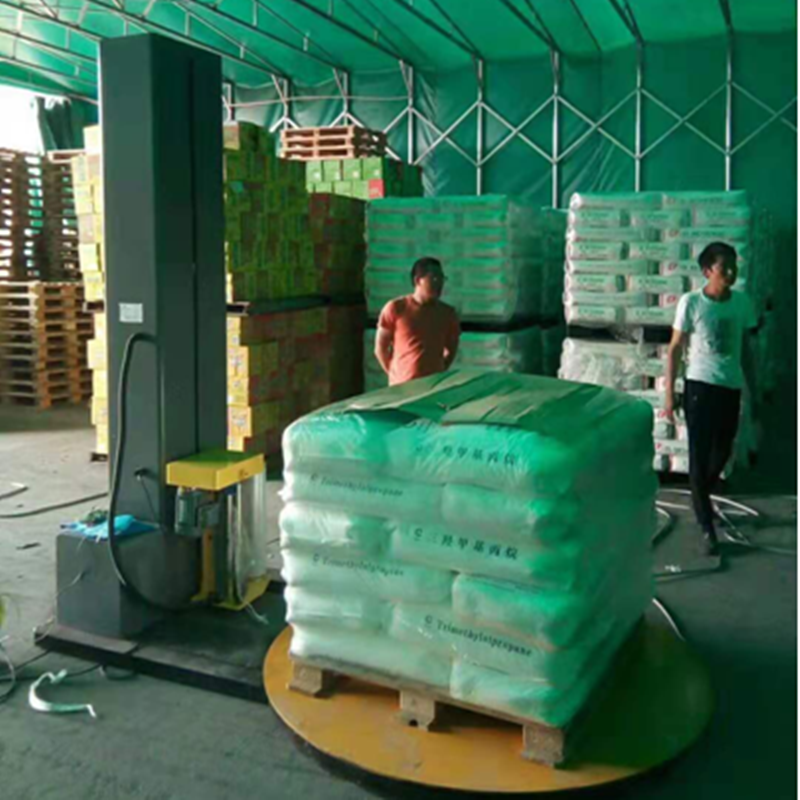

Pallet film wrapping machine

Pallet film wrapping machine

Pallet film wrapping machine


Pallet film winding machine


The pallet film wrapping machine includes the host part, electrical control system, safety system and communication between the tray control system and PLC.


Basic parameters of packing goods

The maximum range of optional trays is: (500mm*1100mm) (500mm*1200mm)

Optional packing height is: 500-2000mm

Maximum mass of packing goods: 2000kg

Production speed: 20-40 pieces/hour


Equipment features:
1) Control system, PLC programmable control, the number of winding layers and times can be changed
2) Turntable drive, turntable frequency control 0~12rpm adjustable
3) Film system (standard film frame), film frame dynamic pretensile mechanism, pretensile up to 250%.
4) Column part, double chain drive, stable and reliable


Equipment Installation:
The equipment installation position and ground should be level.
No other devices are allowed in the space above the device installation position.
The device must have an independent power supply. Sharing power with other devices is strictly prohibited.
