NE plate link chain bucket elevator for sand, cement, coal

NE type bucket elevator with large throughput, great enhancing-height, stable and reliable operation, long life and other significant advantages. Hybrid-type or gravity discharge, earth-type loading. Application to transport packing density of less than 1.5t/m³, easy to take out the powder, granular, small block of low-mill cut materials, such as coal, cement, gravel, sand fertilizer, food and so on .Delivery temperature of the material does not exceed 250℃.

Working principle

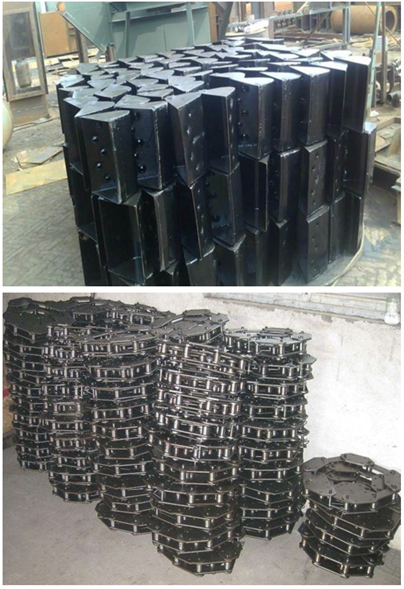

While powered on, the hopper material is scooped up form the following storage, with the chain ascend to the top, flip down after bypass the top chain wheel, bucket elevator poured material into receiving groove. Chain bucket elevator are generally equipped with two parallel transmission chain, there are a pair of driving chain wheel above or below, other pair of redirection chain wheel. Bucket elevator is generally equipped with chassis, to prevent the dust float in the sky.

    Any change of technical data shall not be advised additionally

1. Export packing(Wooden case, carbon case or pallet).

2. It is suitable for long distance ocean transport
