Air floating dry mortar packing machine

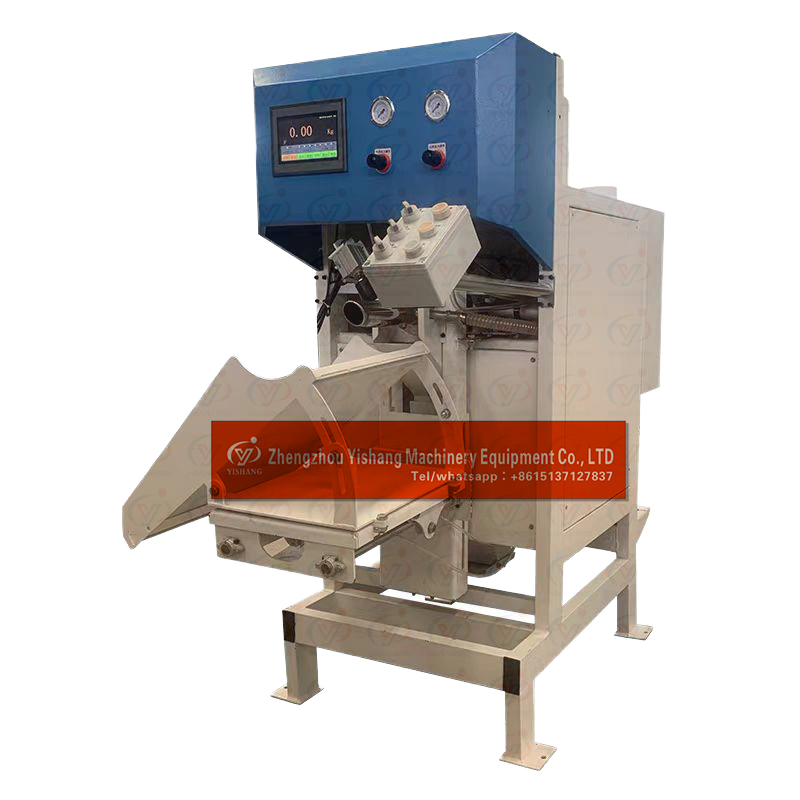

Thermoplastic road marking paint valve bag packing machine / filling machine / bagging machine
Overview:
Thermoplastic road marking paint valve bag packing machine / filling machine / bagging machine for the traffic road marking paint industry. The microcomputer system of the equipment is produced by industrial components and STM process. It has the advantages of small size, strong function, high reliability and good adaptability. It integrates weighing control with unique anti-interference ability and can be used in harsh environment for a long time.
Working principle of packing machine:
Through the instrument and sensor to receive the weight analog signal and processing into digital signal, through the relay conversion signal to control the contactor and solenoid valve to achieve the air flow switch and cylinder action. The discharging principle is to use pneumatic fluidization to quickly remove the material from the discharging port, and the internal gas is blown to form high pressure inside the power head and the material is blown away to help pull out the material.
Technical specification:
a. Ambient temperature: -5 ° C to +40 ° C
b. Access dry air pressure: 0.6 ~ 0.8MPa
c. Power supply: AC220V
d. Equipment dimensions: length, width and height 1000mm*670mm*1660mm.
e. Power consumption of packaging machine, 20W
f. Loading accuracy +0.5kg
g. discharging speed: 5 s / 25 kg / 1 PC, 10 s / 50 kg / 1 PC, the material is different,The data will change
h. Output varies according to different materials, generally about 8T/h
I. An air compressor with a displacement of 0.9m³/min is required
Precautions for safe use:
Sensors have been installed on the equipment, and electric welding operations on the equipment should be avoided as far as possible. If it is necessary to weld, the welding position should be near the iron to ensure that the sensor is not affected by any welding current. If the sensor has been connected to the controller, then all welding operations on the mechanical component part of your equipment are absolutely not allowed. Ensure that the power supply entering the device is stable and without interference; otherwise, the device will be damaged and the control system will be interfered.
Ensure that the air source into the packaging machine is dry, otherwise it will bring many problems to the equipment - plugging, solenoid valve loss, cylinder pollution and so on. The packing machine must be placed smoothly without shaking, and the upper pneumatic butterfly valve must be firmly connected.
Equipment users must ensure to clean equipment dust twice a day. Must be equipped with dust removal equipment, improve the working environment.
The weighing body ensures that the weight is checked at any time from time to time to ensure the accuracy of weighing and avoid the product weight in batches out of tolerance
